Input parameters: Three phase AC380V±10%, 50HZ
Output parameters: DC +12V 4000A / -12V 4000A
Output mode: Polarity reversing
Cooling method: Air cooling
Power supply type: IGBT-based
Application Industry: Plating industry, such as hard chrome plating
In a ±12V 4000A polarity-reversing rectifier for hard chrome plating, the AC input voltage is first rectified and then filtered to obtain a stable high-voltage DC power. The “variable frequency conversion” stage inverts this high-voltage direct current into approximately 30kHz high-frequency alternating current. This high-frequency AC is then transformed into secondary voltage via a high-frequency transformer and filtered through a high-frequency rectifier circuit to produce the required output voltage. The plating rectifier Power Supply employs a control circuit to sample output voltage and current. These sampled signals undergo closed-loop feedback to generate pulse width modulation (PWM) signals, which regulate the inverter circuit and maintain stable output voltage/current – a critical requirement for precision electroplating applications.
Manufacturers widely use electroplating rectifier equipment for various surface treatment applications, including PCB electroplating, hard chrome coating, copper plating, nickel plating, zinc plating, gold plating, tin plating, and silver plating, among other metal finishing.
1)Field application diagram：
2)Industry application examples:
› Modular parallel connection
› Optional N+1 redundant backup
› Capable of online hot maintenance
› RS485 digital control function
› Low-voltage MOS tube rectification
› High power factor, high efficiency
› Reasonable structural design
› Effective sealed isolation
› No water joint design inside the unit
› Practical and effective multiple protection system
› Full soft switch technology
› High reliability
› Low noise, high protection level
Protection Against Corrosion
– Shields metal surfaces from rust and chemical damage (e.g., zinc plating on steel).
Increased Wear Resistance
– Hard coatings (e.g., chromium plating) reduce friction and extend part life.
Improved Appearance
– Adds shiny, decorative finishes (e.g., gold plating on jewelry, chrome on car parts).
Better Electrical Conductivity
– Used in electronics (e.g., copper plating on circuit boards).
Enhanced Solderability
– Improves bonding in electronic components (e.g., tin plating).
Repair of Worn Parts
– Restores dimensions and functionality (e.g., rebuilding engine components).
Special Industrial Uses
– Provides heat resistance (e.g., nickel plating in aerospace).
– Used in medical devices (e.g., biocompatible coatings).
› Copper Plating
Purpose: Enhances adhesion for subsequent layers and corrosion resistance.
Note: Prone to oxidation (forms non-conductive copper oxide/green patina). Requires protective coatings.
› Nickel Plating
Purpose: Used as a base layer or decorative finish; improves corrosion/wear resistance. Electroless nickel offers chrome-like durability.
Note: Magnetic properties limit use in electronics (e.g., DIN/N connectors) to avoid signal interference.
› Gold Plating
Purpose: Optimizes conductive contact impedance and signal transmission.
Key: High stability but costly.
› Palladium-Nickel Plating
Purpose: Superior signal transmission and wear resistance vs. gold.
Advantage: Combines palladium’s corrosion resistance with nickel’s hardness.
› Tin-Lead Plating
Purpose: Improves solderability.
Trend: Phased out due to lead concerns; replaced by bright/matte tin alternatives.
› Silver Plating
Purpose: Best conductivity and signal performance.
Note: Conducts even when oxidized but tarnishes over time. Higher cost.
Selection Criteria
Match plating type to application needs: corrosion/wear resistance, conductivity, cost, and environmental regulations.
› Cathode
The object to be plated (e.g., connector terminals or metal surfaces) where metal ions deposit into a solid coating.
› Anode
Soluble Anode: Made of the plating metal. Dissolves during electrolysis to replenish metal ions in the solution.
Insoluble Anode: Used for precious metals (e.g., white gold, iridium oxide). Does not dissolve but supplies electrons for reduction.
› Plating Solution
Contains ions of the target metal. Composition and concentration determine coating thickness, adhesion, and appearance.
› Plating Tank
Materials: Must resist corrosion and temperature fluctuations (e.g., polypropylene, titanium alloys).
Role: Stores solution and maintains stable plating conditions.
› Rectifier
Converts AC to DC power to drive electrolysis.
Adjust voltage/current to control deposition speed and coating thickness.
› Auxiliary Equipment
Filters: Remove impurities from the solution.
Heaters: Maintain solution temperature.
Stirrers: Ensure uniform mixing.
Air Cooling:Heat dissipation fan + air duct + comb heat sink
Water Cooling：Built-in water circulation line
| Characteristic Types | Parameter Items | Technical Requirements |
| Power Types | Power types | High-frequency Power Supply |
| Model and specifications | TBFA-4000A/±12V | |
| Cooling mode | Air-cooled | |
| Switch tube type | IGBT | |
| Input Characteristics | Rated Input Voltage | Three-phase, AC380V±10% ,50HZ |
| Rated Input Power | 41.6KVA | |
| Rated Input Current | AC 63.3A | |
| Input Power Factor | COSΦ≥0.95 | |
| Output Characteristics | Output Voltage | DC +12V/-12V |
| Output Current | DC +4000A/-4000A | |
| Stabilized Current Precision | ≤1%（Rated Current) | |
| According to accuracy | 1A，0.01V | |
| Rated Output efficiency | ≥91% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤2000 meters | |
| Ambient temperature | -20℃～40℃ | |
| Relative humidity | ≤90％ | |
| Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
| Other | Power unit | Use two 2000A/12V power supply |

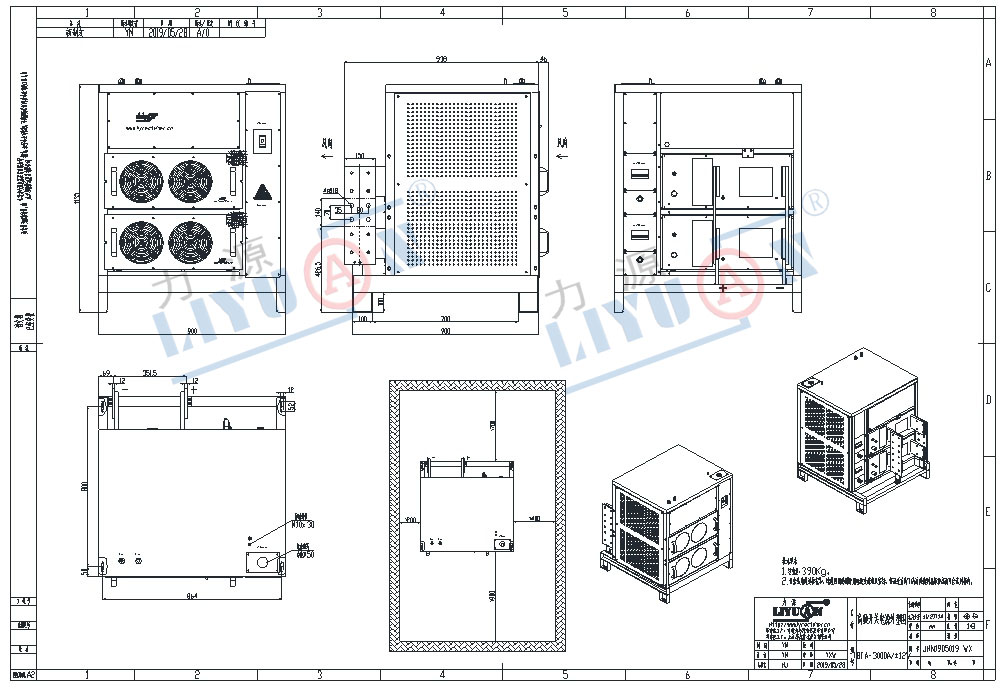

| External Dimension | Height*Width*Depth | H1135mm×W864mm×D900mm |
| Protection Characteristics | Self-protective function under the abnormal situations
such as over/Low-voltage, over-current, default phase， short circuit, overheating and so on |
|
| Model | Input | Output | Dimension (H*W*L)/mm |
| TBFA-500A/±12V | Three phaseAC380V±10% 50HZ | DC 0～±12V DC 0～±500A | 485×210×460 |
| TBFA-10KA±15V | Three phaseAC380V±10% 50HZ | DC 0～±15V DC 0～±10KA | 2000×1200×1050 |
| TBFA-6000A/±12V | Three phaseAC380V±10% 50HZ | DC 0～12V DC 0～6KA | 1510×920×900 |
| TBFA-180A/±150V | Three phaseAC380V±10% 50 HZ | DC 0～±150V DC 0～180A | 2200×800×1000 |
| TBFA-2500A/±15V | Three phaseAC380V±10% 50HZ | DC 0～±15V DC 0～±2500A | 485×265×768 |
| TBFA-30A/12V | Single phaseAC220V±10% 50HZ | DC 0～±12V DC 0～±30A | 238×330×551 |
| TBFAT-2500A±15V | Three phaseAC380V±10% 50HZ | DC 0～±15V DC 0～±2500A | 500×616×900 |
| TBFA-800A/±12V | Three phaseAC380V±10% 50HZ | DC 0～±12V DC 0～±800A | 485×210×460 |
| TBFA-8000A±15V | Three phaseAC380V±10% 50HZ | DC 0～±15V DC 0～±8000A | 2160×2000×1300 |
| TBFA-10KA±15V | Three phaseAC380V±10% 50HZ | DC 0～±15V DC 0～±10KA | 2000×1200×1050 |
| ※Can be customized according to requirements※ | |||
