Principles of IGBT Rectifier

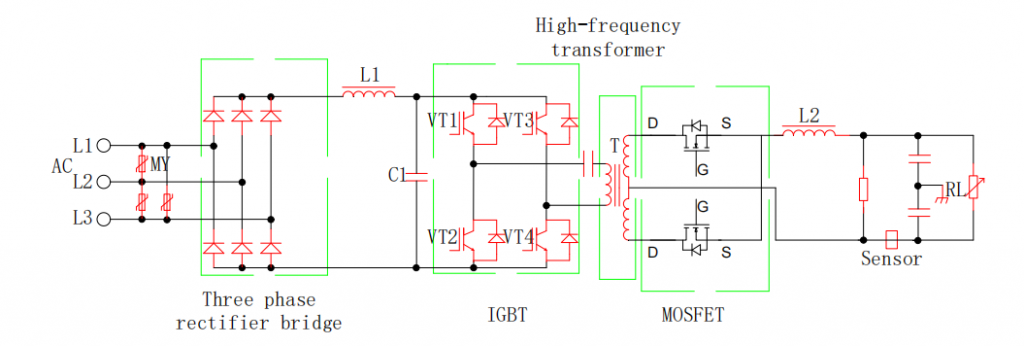

Schematic diagram of unit module made by IGBT:

TB series high-frequency rectifiers are made of IGBT and adopt synchronous MOS tube rectification.

The highest efficiency is 94% and the average working efficiency is about 93%.

Advantages of IGBT Rectifier

High Efficiency

IGBT has low conduction loss and switching loss, which can achieve efficient energy conversion and is suitable for high-precision and high reliability requirements such as electrolytic copper. Under low voltage and low current conditions, the efficiency is higher than that of thyristors.

High Precision

Through PWM control, the output voltage and current can be precisely adjusted to meet the strict requirements of the electrolysis process. Quickly respond to load changes and reduce voltage fluctuations.

Modular Design

IGBT power supply adopts modular design, which is easy to maintain and expand. Modular design improves the reliability and flexibility of the system,reducing maintenance costs.

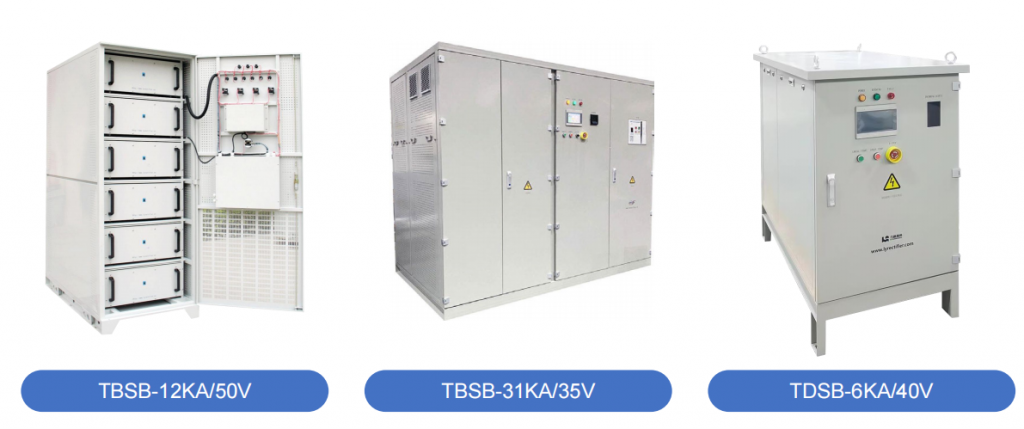

IGBT Electrolysis Rectifier
