1. Drawer type structure, easy to handle with handle
2. High control precision, low ripple coefficient, uniform current distribution, plating ability
3. High efficiency, high power factor, energy saving
4. Unique corrosion resistant seal design, so that it can be placed in any position cylinder edge
5. With soft start, over temperature, overload, over voltage, short circuit and current limit protection
6. Provides RS485 ports or standard 4 to 20MA, 0 to 10V, and 0 to 5V control signals
7. Internal circuit board adopts anti-theft fog acidification of three anti adhesive, so that electronic components are not easy to be corroded by the environment, the product is durable
Electroplating is the process of applying a thin layer of other metals or alloys on the surface of certain metals by electrolysis. It is a process of applying a metal film to the surface of metals or other materials to prevent metal oxidation (such as rust), improve wear resistance, electrical conductivity, reflectivity, corrosion resistance (copper sulfate, etc.) and enhance aesthetics. IGBT type rectifier is the best choice for kinds of electroplating and electrolysis, high stability, efficient and energy saving.
Types of plating:
Input voltage | 3-phase AC380V±10%,50~60HZ |
Voltage regulation precision | ≤1% |
Current regulation precision | ≤1% |
Rated efficiency | ≥94% |
Power factor | ≥0.98 |
Ripple wave coefficient | 1%~3% |
Operation environment | -10~40℃ |
Storage temperature | -20~50℃ |

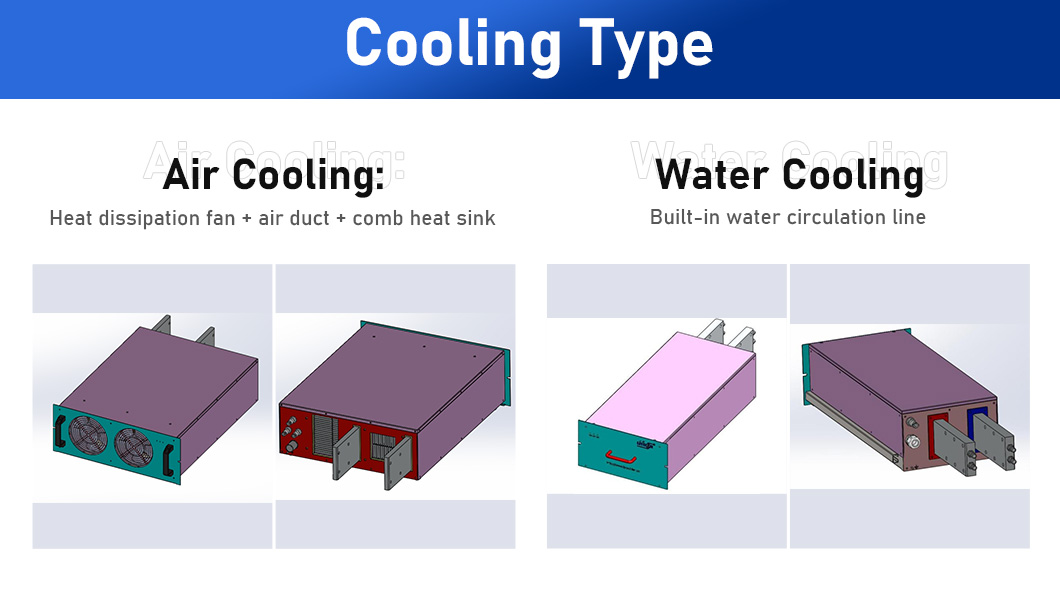

Cooled mode | Air cooled |
Operation conditions | Full load 24 hours running |
Input voltage | Full digital RS485 control system with WIFI optional |
Model | Input | Output | Dimension (H*W*L)/mm |
TBFBZ-4000A/15V | Three phaseAC380V±10% 50HZ | DC 0~15V DC 0~4000A | 1085×646×885 |
TBFBZ-3500A/6V | Three phaseAC380V±10% 50HZ | DC 0~6V DC 0~3500A | 233×627×725 |
TBFBZ-3000A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~3000A | 270×737×740 |
TBFBZ-2500A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~2500A | 238×944×692 |
TBFBZ-2000A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~2000A | 238×625×692 |
TBFBZ-1500A/15V | Three phaseAC380V±10% 50HZ | DC 0~15V DC 0~1500A | 205×692×625 |
TBFBZ-1500A/4V | Three phaseAC380V±10% 50HZ | DC 0~4V DC 0~1500A | 238×582×644 |
TBFBZ-1200A/5V | Three phaseAC380V±10% 50~60HZ | DC 0~5V DC 0~1200A | 200×615×490 |
TBFBZ-1000A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~1000A | 233×615×674 |
TBFBZ-1000A/6V | Three phaseAC380V±10% 50HZ | DC 0~6V DC 0~1000A | 327×190×613 |
TBFBZ-1000A/5V+G | Three phaseAC380V±10% 50HZ | DC 0~5V DC 0~1000A | 327×190×613 |
TBFBZ-800A/10V | Three phaseAC380V±10% 50HZ | DC 0~10V DC 0~800A | 233×440×550 |
TBFBZ-800A/4V | Three phaseAC380V±10% 50~60HZ | DC 0~4V DC 0~800A | 312×190×501 |
TBFBZ-600A/24V | Three phaseAC380V±10% 50HZ | DC 0~24V DC 0~600A | 233×615×674 |
TBFBZ-600A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~600A | 276×420×498 |
TBFBZ-600A/8V | Three phaseAC380V±10% 50HZ | DC 0~8V DC 0~600A | 276×420×498 |
TBFBZ-600A/6V+P | Three phaseAC380V±10% 50HZ | DC 0~6V DC 0~600A | 312×270×501 |
TBFBZ-600A/5V | Three phaseAC380V±10% 50HZ | DC 0~5V DC 0~600A | 327×190×613 |
TBFBZ-500A/24V | Three phaseAC380V±10% 50HZ | DC 0~24V DC 0~500A | 233×615×674 |
TBFBZ-500A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~500A | 276×420×498 |
TBFBZ-500A/6V | Single phaseAC220V±10% 50HZ | DC 0~6V DC 0~500A | 312×270×613 |
TBFBZ-500A/5V | Single phaseAC220V±10% 50HZ | DC 0~5V DC 0~500A | 312×270×501 |
TBFBZ-400A/8V | Three phaseAC380V±10% 50HZ | DC 0~8V DC 0~400A | 276×420×498 |
TBFBZ-400A/6V | Three phaseAC380V±10% 50Hz | DC 0~6V DC 0~400A | 225×100×433 |
TBFBZ-350A/6V | Three phaseAC380V±10% 50~60HZ | DC 0~6V DC 0~350A | 225×100×433 |
TBFBZ-300A/12V | Three phaseAC380V±10% 50Hz | DC 0~12V DC 0~300A | 314×190×613 |
TBFBZ-300A/5V | Three phaseAC380V±10% 50~60HZ | DC 0~5V DC 0~300A | 225×100×433 |
TBFBZ-200A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~200A | 225×230×428 |
TBFBZ-200A/6V | Three phaseAC220V±10% 50HZ | DC 0~6V DC 0~200A | 225×100×433 |
TBFBZ-150A/12V | Single phaseAC220V±10% 60HZ | DC 0~12V DC 0~150A | 327×190×613 |
TBFBZ-150A/6V | Single phaseAC220V±10% 50HZ | DC 0~6V DC 0~150A | 225×100×428 |
TBFBZ-100A/24V | Three phaseAC380V±10% 50 HZ | DC 0~24V DC 0~100A | 199×540×420 |
TBFBZ-100A/12V | Single phaseAC220V±10% 50HZ | DC 0~12V DC 0~100A | 225×100×428 |
TBFBZ-100A/8V | Three phaseAC380V±10% 50HZ | DC 0~8V DC 0~100A | 225×100×433 |
TBFBZ-100A/5V | Three phaseAC380V±10% 50HZ | DC 0~5V DC 0~100A | 225×100×433 |
※Can be customized according to requirements※ |
If you require electroplating rectifiers with different specifications, we can custom-design them to meet your requirements. Please contact us for more information.
