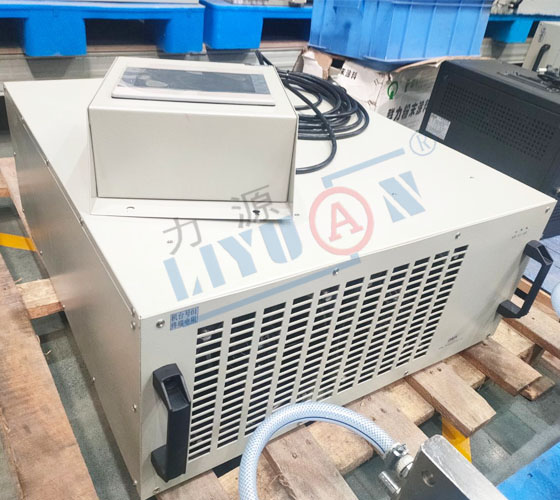

Input parameters: Three phase AC380V±10%, 50HZ

Output parameters: DC +12V 2000A / -12V 2000A

Output mode: Polarity-reversing

Cooling method: Air cooling

Power supply type: IGBT-based

Application Industry: Plating industry, such as chrome plating

In a ±12V 2000A polarity conversion rectifier for hard chrome plating, the AC input voltage is first rectified and then filtered to obtain a stable high-voltage DC power. The “variable frequency conversion” stage inverts this high-voltage direct current into approximately 30kHz high-frequency alternating current. This high-frequency AC is then transformed into secondary voltage via a high-frequency transformer and filtered through a high-frequency rectifier circuit to produce the required output voltage. The ​plating rectifier Power Supply employs a control circuit to sample output voltage and current. These sampled signals undergo closed-loop feedback to generate pulse width modulation (PWM) signals, which regulate the inverter circuit and maintain stable output voltage/current – a critical requirement for precision electroplating applications.

Manufacturers widely use electroplating rectifier equipment for various surface treatment applications, including PCB electroplating, hard chrome coating, copper plating, nickel plating, zinc plating, gold plating, tin plating, and silver plating, among other metal finishing.

1)Field application diagram：

2)Industry application examples:



Technology Advantages:

› Modular parallel connection

› Optional N+1 redundant backup

› Capable of online hot maintenance

› RS485 digital control function

› Low-voltage MOS tube rectification

› High power factor, high efficiency

› Reasonable structural design

› Effective sealed isolation

› No water joint design inside the unit

› Practical and effective multiple protection system

› Full soft switch technology

› High reliability

› Low noise, high protection level

Role of electroplating:

Protection Against Corrosion

– Shields metal surfaces from rust and chemical damage (e.g., zinc plating on steel).

Increased Wear Resistance

– Hard coatings (e.g., chromium plating) reduce friction and extend part life.

Improved Appearance

– Adds shiny, decorative finishes (e.g., gold plating on jewelry, chrome on car parts).

Better Electrical Conductivity

– Used in electronics (e.g., copper plating on circuit boards).

Enhanced Solderability

– Improves bonding in electronic components (e.g., tin plating).

Repair of Worn Parts

– Restores dimensions and functionality (e.g., rebuilding engine components).

Special Industrial Uses

– Provides heat resistance (e.g., nickel plating in aerospace).

– Used in medical devices (e.g., biocompatible coatings).



Types of electroplating:

› Copper Plating

Purpose: Enhances adhesion for subsequent layers and corrosion resistance.

Note: Prone to oxidation (forms non-conductive copper oxide/green patina). Requires protective coatings.

​› Nickel Plating

Purpose: Used as a base layer or decorative finish; improves corrosion/wear resistance. Electroless nickel offers chrome-like durability.

Note: Magnetic properties limit use in electronics (e.g., DIN/N connectors) to avoid signal interference.

​› Gold Plating

Purpose: Optimizes conductive contact impedance and signal transmission.

Key: High stability but costly.

​› Palladium-Nickel Plating

Purpose: Superior signal transmission and wear resistance vs. gold.

Advantage: Combines palladium’s corrosion resistance with nickel’s hardness.

​› Tin-Lead Plating

Purpose: Improves solderability.

Trend: Phased out due to lead concerns; replaced by bright/matte tin alternatives.

​› Silver Plating

Purpose: Best conductivity and signal performance.

Note: Conducts even when oxidized but tarnishes over time. Higher cost.

​Selection Criteria

Match plating type to application needs: corrosion/wear resistance, conductivity, cost, and environmental regulations.



Elements of Electroplating:

› Cathode
The object to be plated (e.g., connector terminals or metal surfaces) where metal ions deposit into a solid coating.

› Anode

​Soluble Anode: Made of the plating metal. Dissolves during electrolysis to replenish metal ions in the solution.

​Insoluble Anode: Used for precious metals (e.g., white gold, iridium oxide). Does not dissolve but supplies electrons for reduction.

› Plating Solution
Contains ions of the target metal. Composition and concentration determine coating thickness, adhesion, and appearance.

› Plating Tank

Materials: Must resist corrosion and temperature fluctuations (e.g., polypropylene, titanium alloys).

Role: Stores solution and maintains stable plating conditions.

› Rectifier

Converts AC to DC power to drive electrolysis.

Adjust voltage/current to control deposition speed and coating thickness.

› Auxiliary Equipment

​Filters: Remove impurities from the solution.

​Heaters: Maintain solution temperature.

​Stirrers: Ensure uniform mixing.


Component Part for Electroplating:



Cooling Type for Electroplating

Air Cooling:Heat dissipation fan + air duct + comb heat sink

Water Cooling：Built-in water circulation line



Technical Parameters:

Characteristic Types	Parameter Items	Technical Requirements
Power Types	Power types	High-frequency Power Supply
	Model and specifications	TBFA-2000A/±12V
	Cooling mode	Air-cooled
	Switch tube type	IGBT
Input Characteristics	Rated Input Voltage	Three-phase, AC380V±10% ,50HZ
	Rated Input Power	27.8KVA
	Rated Input Current	AC 42.2A
	Input Power Factor	COSΦ≥0.95
Output Characteristics	Output Voltage	DC  0～12V
	Output Current	DC  0～2000A
	Stabilized Current Precision	≤1%（Rated Current)
	According to accuracy	1A，0.01V
	Rated Output efficiency	≥91%
Environmental Conditions	Installation site	Indoor installations
	Altitude	≤2000 meters
	Ambient temperature	-20℃～40℃
	Relative humidity	≤90％
Control Mode	Operating mode	PLC, ADDA, Ethernet, RS485 and RS232
Other	Power unit	Use a single 2000A/12V power supply

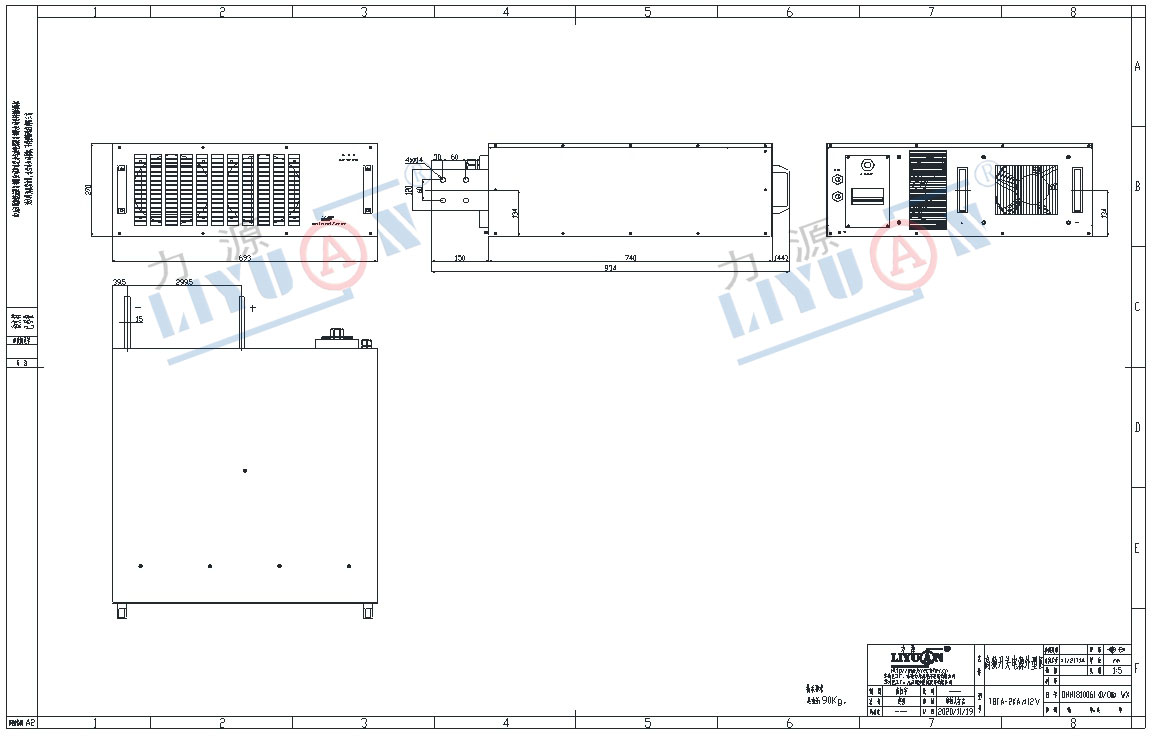

External Dimension	Height*Width*Depth	H270mm×W693mm×D934mm
Protection Characteristics	Self-protective function under the abnormal situationssuch as over/Low-voltage, over-current, default phase， short circuit, overheating and so on



Optional models:



Solution:
