Rated input voltage: Three-phase AC440V±10% 60Hz Complies with National Power Quality Standards
Output voltage: DC 0～15 V adjustment
Output current: DC 0～2500 A adjustment
Cooling method: Water Cooling
Power supply type: High Frequency Power Supply
Application Industry: Surface treatment industry, such as PCB plating, zinc, nickel and chrome plating.

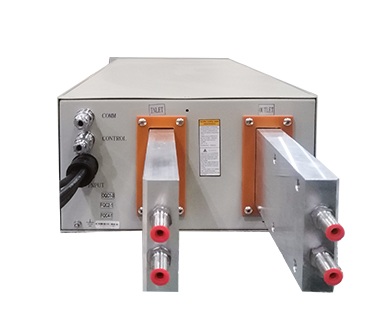

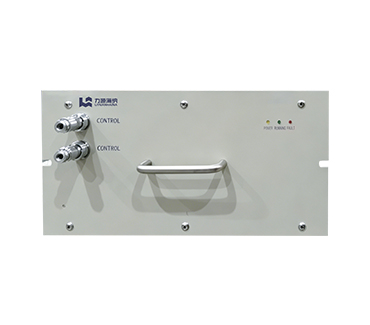

The critical DC output stability is achieved through a multi-stage conversion process. This high-performance system is a 2500A, 15V water-cooled rectifier, designed specifically for nickel plating applications.
After the AC input voltage is filtered by a rectifier circuit, high-voltage DC power is obtained. The “variable frequency conversion” stage inverts this high-voltage direct current into approximately 30kHz high-frequency alternating current. This high-frequency AC is then transformed into secondary voltage via a high-frequency transformer and filtered through a high-frequency rectifier circuit to produce the required output voltage. The Rectifier for Plating employs a control circuit to sample output voltage and current. These sampled signals undergo closed-loop feedback to generate pulse width modulation (PWM) signals, which regulate the inverter circuit and maintain stable output voltage/current – a critical requirement for precision electroplating applications.
The rectifier is mainly used in industries such as electrolytic gas, electrolytic hydrogen production, electrolytic copper foil, electronic aluminum foil, rare earth smelting, PCB electronics, hardware electroplating, oxidation, water treatment, etc.
1)Field application diagram：
2)Industry application examples:
› RS485 digital control function
› High power factor and high efficiency
› Reasonable structural design
› Only the radiator is in the air duct
› Effective sealing and isolation
› High protective properties
› Standard wiring and special wiring
› Practical and effective multiple protection system
› Full soft switching technology
› High reliability
Protection Against Corrosion
– Shields metal surfaces from rust and chemical damage (e.g., zinc plating on steel).
Increased Wear Resistance
– Hard coatings (e.g., chromium plating) reduce friction and extend part life.
Improved Appearance
– Adds shiny, decorative finishes (e.g., gold plating on jewelry, chrome on car parts).
Better Electrical Conductivity
– Used in electronics (e.g., copper plating on circuit boards).
Enhanced Solderability
– Improves bonding in electronic components (e.g., tin plating).
Repair of Worn Parts
– Restores dimensions and functionality (e.g., rebuilding engine components).
Special Industrial Uses
– Provides heat resistance (e.g., nickel plating in aerospace).
– Used in medical devices (e.g., biocompatible coatings).
› Copper Plating
Purpose: Enhances adhesion for subsequent layers and corrosion resistance.
Note: Prone to oxidation (forms non-conductive copper oxide/green patina). Requires protective coatings.
› Nickel Plating
Purpose: Used as a base layer or decorative finish; improves corrosion/wear resistance. Electroless nickel offers chrome-like durability.
Note: Magnetic properties limit use in electronics (e.g., DIN/N connectors) to avoid signal interference.
› Gold Plating
Purpose: Optimizes conductive contact impedance and signal transmission.
Key: High stability but costly.
› Palladium-Nickel Plating
Purpose: Superior signal transmission and wear resistance vs. gold.
Advantage: Combines palladium’s corrosion resistance with nickel’s hardness.
› Tin-Lead Plating
Purpose: Improves solderability.
Trend: Phased out due to lead concerns; replaced by bright/matte tin alternatives.
› Silver Plating
Purpose: Best conductivity and signal performance.
Note: Conducts even when oxidized but tarnishes over time. Higher cost.
Selection Criteria
Match plating type to application needs: corrosion/wear resistance, conductivity, cost, and environmental regulations.
› Cathode
The object to be plated (e.g., connector terminals or metal surfaces) where metal ions deposit into a solid coating.
› Anode
Soluble Anode: Made of the plating metal. Dissolves during electrolysis to replenish metal ions in the solution.
Insoluble Anode: Used for precious metals (e.g., white gold, iridium oxide). Does not dissolve but supplies electrons for reduction.
› Plating Solution
Contains ions of the target metal. Composition and concentration determine coating thickness, adhesion, and appearance.
› Plating Tank
Materials: Must resist corrosion and temperature fluctuations (e.g., polypropylene, titanium alloys).
Role: Stores solution and maintains stable plating conditions.
› Rectifier
Converts AC to DC power to drive electrolysis.
Adjust voltage/current to control deposition speed and coating thickness.
› Auxiliary Equipment
Filters: Remove impurities from the solution.
Heaters: Maintain solution temperature.
Stirrers: Ensure uniform mixing.
Air Cooling:Heat dissipation fan + air duct + comb heat sink
Water Cooling：Built-in water circulation line
| Type of characteristics | Parameters | Technical Requirements |
| Input characteristics | Rated input voltage | Three-phase AC440V±10% 60Hz Complies with National Power Quality Standards |
| Rated input current | AC 55.1 A | |
| Rated input power | 42 KVA | |
| Rated input power Factor | COSΦ≥0.95 | |
| Output characteristics | Output voltage | DC 0～15V adjustment |
| Output current | DC 0～2500A adjustment | |
| Precision of steady current | ≤1% | |
| Precision of stable voltage | ≤1% | |
| Displayed precision | 1A，0.1V | |
| current
ripple coefficient |
≤3%(I≥50%Id) | |
| Rated output power | ≥91% | |
| Insulation characteristic | Insulation resistance | Input – Output: ≥5MΩ |
| Input – Cabinet: ≥5MΩ | ||
| Output – Cabinet: ≥5MΩ | ||
| Protective characteristics | With self-protection function under non-normal cases such as over-voltage, over-current, overload, short circuit and overheating | |
| Other characteristics | Noise | ≤60dB |
| Running state | Continuous full load run of product | |
| Load level | Level II | |
| Insulation grade of the transformer | Grade B | |
| Weight | 56kg | |
