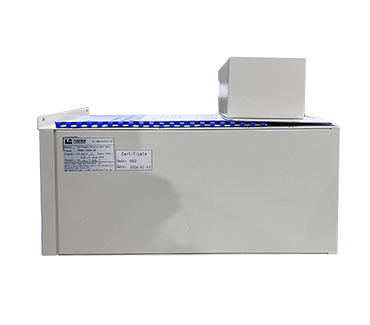

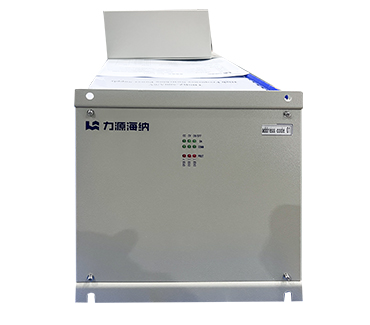

500A 6V DC Electrolytic Rectifier for Silver Electrolysis Applications

Specifications:

Input parameters: Three phase, AC380V±10% ,50~60HZ

Output parameters: DC 0~6V 0~500A

Output mode: Ordinary direct current

Cooling method: Water cooling

Power supply type: IGBT-based

Application Industry: Non-ferrous metal electrolysis, such as electrolytic silver

Description:

After the AC input voltage is filtered by the rectifier circuit, the high-voltage DC power is obtained. The 500A 6V Electrolytic Silver Rectifier Power Supply for Silver Electrolysis uses “variable frequency conversion” to invert the high-voltage direct current into about 30kHz high-frequency alternating current, which is then converted into the secondary voltage by a high-frequency transformer, and then filtered by the high-frequency rectifier circuit to obtain the required output voltage. Sampling of output voltage and current is made by the control circuit, and then the signal of pulse width modulation (PWM) for controlling the inverter circuit is generated after closed-loop feedback to keep the output voltage and current steady.

Applications

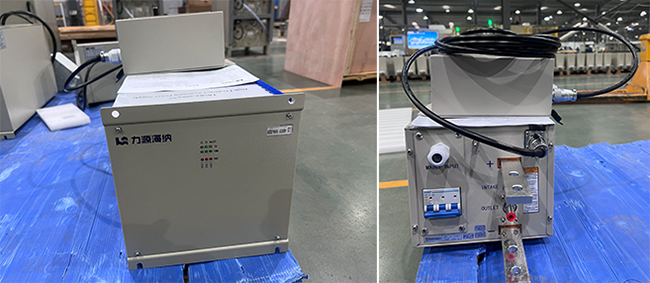

The TBSBZ-500A/6V is ideal for high-purity silver refining (up to 99.99%), silver electrowinning from solutions, silver recovery from scrap or photographic waste, laboratory-scale silver electrolysis research, and small to medium-scale precious metal refineries.

Technology Advantages：

› High Reliability

› Easy to use and repair

› Fault Self-diagnosis

› High accuracy of steady flow

› Soft startup, soft shutdown

› On/Off loop disturbance-free switch

› High efficiency (≥91%)

› Low ripple (≤3%)

› Compact & lightweight

› Water-cooled

› RS485 remote control

Technical Parameters：

Type of characteristics	Parameters	Technical Requirements
Input characteristics	Rated input voltage	Three-phase AC380V ± 10% 50 – 60Hz, Compliance with National Power Quality Standards
	Rated input current	AC 4.8A
	Rated input power	3.5 KVA
	Rated input power factor	COSΦ≥0.95
Output characteristics	Output voltage	DC 0～6V (Adjustable from 1% to 100%)
	Output current	DC 0～500A(Adjustable from 1% to 100%)
	Precision of steady current	≤1%
	Precision of stable voltage	≤1%
	Displayed precision	1A，0.01V
	Current ripple coefficient	≤3%（I≥50%Id）
	Rated output power	≥91%
Insulation characteristic	Insulation resistance	Input – Output: ≥5MΩ
		Input – Cabinet: ≥5MΩ
		Output – Cabinet: ≥5MΩ
Protective characteristics	With self-protection function under non-normal cases such as over-voltage, over-current, overload, short circuit and overheating
Other characteristics	Noise	≤60dB
	Running state	Continuous full load run of product
	Load level	Level II
	Insulation grade of the transformer	Grade B
	Weight	20kg

Optional models:

Model	Input	Output	*Dimension (mm)/LWH*
TBSB-400A/12V	Three Phase AC380V±10% 50HZ	12V/400A	500343183
TBSB-500A/12V	Three Phase AC380V±10% 50HZ	12V/500A	460310185
TBSB-600A/12V	Three Phase AC380V±10% 50HZ	12V/600A	500343183
TBSB-800A/5V	Three Phase AC380V±10% 50HZ	5V/800A	460310185
TBSB-800A/6V	Three Phase AC380V±10% 50HZ	6V/800A	460310185
TBSB-800A/12V	Three Phase AC380V±10% 50HZ	12V/800A	780350180
TBSB-1000A/12V	Three Phase AC380V±10% 50HZ	12V/1000A	644330192
TBSB-1000A/16V	Three Phase AC380V±10% 50HZ	16V/1000A	620310180
TBSB-1000A/25V	Three Phase AC380V±10% 50HZ	25V/1000A	700352185
TBSB-1000A/36V	Three Phase AC380V±10% 50HZ	36V/1000A	700352185
TBSB-1000A/38V	Three Phase AC380V±10% 50HZ	38V/1000A	780365187
TBSB-1200A/5V	Three Phase AC380V±10% 50HZ	5V/1200A	580342185
TBSB-2000A/5V	Three Phase AC380V±10% 50HZ	5V/2000A	780310180
TBSB-1800A/12V	Three Phase AC380V±10% 50HZ	12V/1800A	780310180
TBSB-2500A/12V	Three Phase AC380V±10% 50HZ	12V/2500A	1024340180
TBSB-3000A/12V	Three Phase AC380V±10% 50HZ	12V/3000A	700352185
TBSB-3000A/15V	Three Phase AC380V±10% 50HZ	15V/3000A	824340180
TBSB-4000A/10V	Three Phase AC380V±10% 60HZ	10V/4000A	700362185
TBSB-4000A/15V	Three Phase AC380V±10% 50HZ	15V/4000A	824340180
TBSB-5000A/7V	Three Phase AC380V±10% 50HZ	7V/5000A	700362185
TBSB-5000A/15V	Three Phase AC380V±10% 50HZ	15V/5000A	824340180

If you need other electrolytic silver rectifiers, we can custom design them according to customer requirements. Please contact us.
