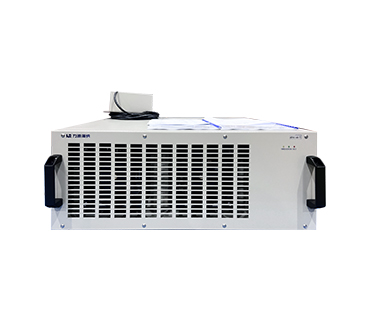

Input parameters: Three-phase AC 380V ± 10% 50Hz
In line with the national power quality standards
Output parameters: DC 0~30V 0~450A
Output mode: Normal DC
Cooling method: Air cooling
Power supply type: synchronous rectifier power supply
Application Industry: Widely applied in electroplating, metal pickling, and industrial surface treatment.
In a 450A 30V industrial electrolytic pickling DC power supply for electrolysis, after the AC input voltage is filtered by a rectifier circuit, high-voltage DC power is obtained. The “variable frequency conversion” stage inverts this high-voltage direct current into approximately 30kHz high-frequency alternating current. This high-frequency AC is then transformed into secondary voltage via a high-frequency transformer and filtered through a high-frequency rectifier circuit to produce the required output voltage. The electrolysis rectifier employs a control circuit to sample output voltage and current. These sampled signals undergo closed-loop feedback to generate pulse width modulation (PWM) signals, which regulate the inverter circuit and maintain stable output voltage/current – a critical requirement for precision electroplating applications.
Electrolytic Pickling Rectifiers are widely used in industries such as metal surface treatment, electroplating, chemical processing, and electronics manufacturing.

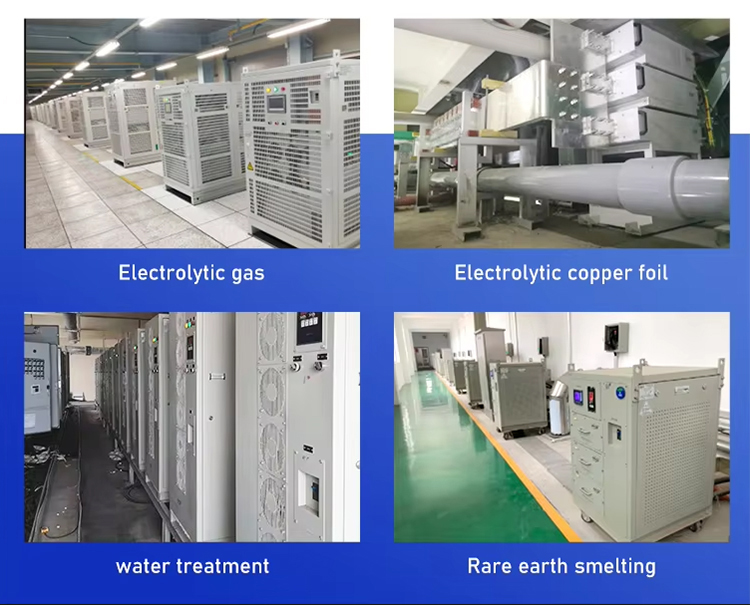

Field application diagram：
Ultra low pressure drop
Synchronous rectification of MOS tube with ultra low voltage drop.
Patent structure design
Patented high-freguency transformer Structural design, more energy saving.
Patent cooling structure
Patented water-cooling structure,
metal cooling plate with built-in cooling water pipe.
Patent structure design
Patented high-frequency transformer structure design more energy saving advantages.
EMC design
Electromagnetic compatibility design the work does not affect the normal operation of other equipment.
Fast backup technology
Fast online redundancy backup technology.
1.High efficiency and remarkable energy-saving effect.
2.High power factor, less pollution to power grid.
3.Output voltage, current, adjustable, constant voltage,constant current automatic conversion.
4.Communication interface function: remote control of power supply
5.Alarm function: it has the alarm functions of over current, over voltage, over temperature and phase loss.
Air Cooling:Heat dissipation fan + air duct + comb heat sink
Water Cooling：Built-in water circulation line
| Attribute type | Parameter items | Technical requirements | |
| Input characteristics | Rated input voltage | Three-phase AC 380V ± 10% 50Hz
In line with the national power quality standards |
|
| Rated input current | AC 24.0A | ||
| Rated input power | 15.8KVA | ||
| Rated input power factor | COSΦ≥0.95 | ||
| Output characteristics | Output voltage | DC 0～30V adjustable | |
| Output current | DC 0～450A adjustable | ||
| Steady current precision | ≤1% | ||
| Steady voltage precision | ≤1% | ||
| Display accuracy | 1A，0.1V | ||
| Rated output efficiency | ≥90% | ||
| Insulation characteristics | Insulation resistance | Input-output: ≥ 5MΩ | |
| Input-chassis: ≥ 5MΩ | |||
| Output-chassis; ≥5MΩ | |||
| Protection characteristics | It has self-protection function under abnormal conditions such as overvoltage, overcurrent, overload, short circuit and overheat | ||
| Other characteristics | Noise | ≤75dB | |
| Operating status | Continuous full load operation of the product | ||
| Load grade | Grade II | ||
| Insulation grade of transformer | Class B | ||
| Weight | 73kg | ||
Liyuan will keep up with the world’s latest technology closely, and uphold the concept of providing customers with high-quality power supplies and professional integrated services.
With advanced design and rich experience in rectifier manufacturing, we will provide the best power solutions as well as the most stable and efficient power supply for users both at home and abroad.
LIYUAN rectifier is the most competitive brand in China
Company relies on strong technology research and development cooperation basis, created a number of advanced technology, in recent 3 years amounted to more than 30 to apply for a patent, which has nearly 10 patents of invention.
Equipped with the national electric power transformation and control engineering technology research center (branch), and has set up a loan enterprise academician workstation.
Strict implementation of ISO quality management system, and through the CE safety certification, has been implementing ERP management for many years, to achieve the network, systematic computer control, the formation of a standard, efficient modern management system.
Liyuan adhere to innovation and the continuous improvement of power conversion efficiency and product quality.
The increasing R&D investment every year, and cooperation with China’s well-known universities, we has established the research center of national electric power conversion and control engineering technology.
Especially the related core patents of high-power synchronous rectifier power supply, stay ahead of the whole industry in China.
The ISO 9001 quality management system has been fully implemented in Liyuan, including quality inspection of components in warehouse, production process inspection, and final product inspection.
We adopt advanced scientific quality management system and the most stringent testing methods in the whole process to ensure the stability and reliability of products.
› Packing
1)Small size rectifier packing in carton box separately.
2)Large size rectifier will be packed in wooden case.
3)We guarantee that all the packing is intact when it reaches its destination.
› Shipping
1)30-45 Days after payment.
2)Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping
3)You may choose our shipping partner or your own partner.
› Maintenance
We are pleasant to share our theory and experience on equipment maintenance with users.
We are pleasant to interact with users to collect their tips and know-hows on equipment maintenance.
The module “Maintenance” here is intended to help users solve various problems they possibly encounter during equipment maintenance…
If you require electrolysis rectifiers with different specifications, we can custom-design them to meet your requirements. Please contact us for more information.
Seeking a 450A 30V industrial electrolytic pickling DC power supply for electrolysis? Liyuan Haina Rectifier, a professional manufacturer with 27+ years specializing in industrial rectifiers, supplies global clients including the United States, Sweden, Netherlands, Italy, Spain, South Africa, Russia, Germany, Japan, South Korea, Malaysia, etc. Our advanced factory delivers cost-effective Made-in-China solutions, with competitive prices and customizable options. Contact us for sales inquiries.
