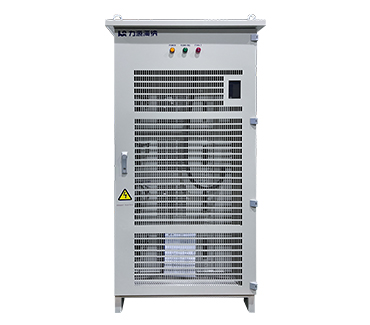

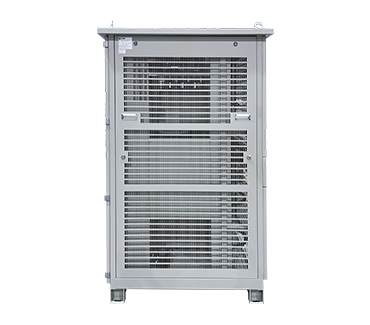

Input parameters: Three-phase AC380V±10% 50Hz
Output parameters: DC 0~450V 0~300A
Output mode: Ordinary direct current
Cooling method: Air cooling
Power supply type: Synchronous rectifier power source
Application Industry: Metal materials anode and cathode electrophoretic coating.

Electrophoresis process is divided into anode electrophoresis and cathode electrophoresis. If the coating particles are negatively charged, the workpiece is anode, and the coating particles are deposited into a film on the workpiece under the action of electric field force, which is called anodic electrophoresis; On the contrary, if the coating particles are positively charged and the workpiece is cathode, the coating particles are deposited on the workpiece into a film called cathode electrophoresis.
Anodic electrophoresis is characterized by: cheap raw materials (generally 50% cheaper than cathodic electrophoresis); Simple equipment, less investment (generally 30% cheaper than cathodic electrophoresis); Low technical requirements; The corrosion resistance of the coating is worse than that of cathodic electrophoresis (about 1/4 of the cathodic electrophoresis life).
The reasons for the high corrosion resistance of cathodic electrophoretic coating are as follows: the workpiece is cathode, no anodic dissolution occurs, and the workpiece surface and phosphating film are not damaged; Electrophoretic paint (usually nitrogenous resin) has a protective effect on metals, and the paint used is of high cost and quality.




| Type of characteristics | Parameters | Technical Requirements |
| Input characteristics | Rated input voltage | Three-phase AC380V±10% 50Hz Complies with National Power Quality Standards |
| Rated input current | AC 230A | |
| Rated input power | 151KVA | |
| Rated input power Ffactor | COSΦ≥0.95 | |
| Output characteristics | Output voltage | DC 0~450V adjustment |
| Output current | DC 0~300A adjustment | |
| Precision of steady current | ≤1% | |
| Precision of stable voltage | ≤1% | |
| Displayed precision | 1A,1V | |
| Rated output power | ≥ 91% | |
| Insulation characteristic | Insulation resistance | Input – Output: ≥5MΩ |
| Input – Cabinet: ≥5MΩ | ||
| Output – Cabinet: ≥5MΩ | ||
| Protective characteristics | With self-protection function under non-normal cases such as over-voltage, over-current, overload, short circuit and overheating | |
| Other characteristics | Noise | ≤75dB |
| Running state | Continuous full load run of product | |
| Load level | Level II | |
| Insulation grade of the transformer | Grade B | |
| Weight | 600kg | |
If you require surface treatments with different specifications, we can provide custom solutions tailored to your requirements. Contact us for more information.
Looking for the factory price on a 300A 450V high voltage rectifier for electrophoretic coating? Liyuan Haina Rectifier, a professional manufacturer with 27+ years specializing in industrial rectifiers, supplies global clients including the United States, Sweden, Netherlands, Italy, Spain, South Africa, Russia, Germany, Japan, South Korea, Malaysia, etc. Our advanced factory delivers cost-effective Made-in-China solutions, with competitive prices and customizable options. Contact us for sales inquiries.
