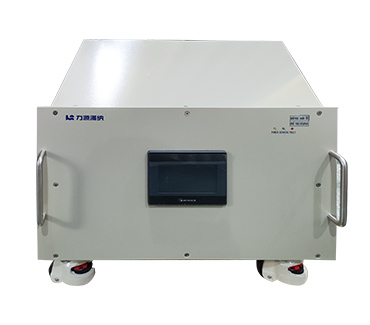

Input parameters: Three-phase AC380V ± 10% 50Hz
Output voltage: 0～±50V
Output current: 0～±120A
Cooling method: Water cooling
Power supply type: Pulsed power supply
Application Industry:Surface treatment industry, including PCB plating, rare metal plating, precision design, precious metal plating, electrolytic polishing, etc.
PCB electroplating power supply mainly includes high-frequency switching power supply, single pulse power supply, high-speed positive and negative pulse power supply, mainly pulse power supply and high-precision DC power supply. The market share of PCB electroplating power supply reaches 75%. Over the years, We have maintained good communication with high-end equipment manufacturers, brand potion manufacturers and end users. Many new technologies have been developed to improve the process quality and efficiency of PCB manufacturing from the aspects of power supply and equipment.
Liyuan PCB power supply has the comprehensive advantages of stable performance (sealing and structure), high efficiency (the highest efficiency can exceed 94%), high control precision, small size, all-new installation mode to reduce costs, improve electroplating uniformity, and optimize electroplating process.
In the PCB manufacturing process, electroless copper plating is an important step. It is widely used in the following two processes. One is plating onto bare laminate and the other is plating through hole, because under these two circumstances, electroplating cannot or can hardly be carried out. In the process of plating onto bare laminate, electroless copper plating plates a thin layer of copper on the bare substrate to make the substrate conductive for further electroplating. In the process of plating through hole, electroless copper plating is used to make the inner walls of the hole conductive to connect the printed circuits in different layers or the pins of the integrated chips.
Manufacturers widely use electroplating rectifier equipment for various surface treatment applications, including PCB electroplating, hard chrome coating, copper plating, nickel plating, zinc plating, gold plating, tin plating, and silver plating, among other metal finishing.
1)Field application diagram：
2)Industry application examples:
› RS485 digital control function
› High power factor and high efficiency
› Reasonable structural design
› Only the radiator is in the air duct
› Effective sealing and isolation
› High protective properties
› Standard wiring and special wiring
› Practical and effective multiple protection system
› Full soft switching technology
› High reliability
Protection Against Corrosion
– Shields metal surfaces from rust and chemical damage (e.g., zinc plating on steel).
Increased Wear Resistance
– Hard coatings (e.g., chromium plating) reduce friction and extend part life.
Improved Appearance
– Adds shiny, decorative finishes (e.g., gold plating on jewelry, chrome on car parts).
Better Electrical Conductivity
– Used in electronics (e.g., copper plating on circuit boards).
Enhanced Solderability
– Improves bonding in electronic components (e.g., tin plating).
Repair of Worn Parts
– Restores dimensions and functionality (e.g., rebuilding engine components).
Special Industrial Uses
– Provides heat resistance (e.g., nickel plating in aerospace).
– Used in medical devices (e.g., biocompatible coatings).
› Copper Plating
Purpose: Enhances adhesion for subsequent layers and corrosion resistance.
Note: Prone to oxidation (forms non-conductive copper oxide/green patina). Requires protective coatings.
› Nickel Plating
Purpose: Used as a base layer or decorative finish; improves corrosion/wear resistance. Electroless nickel offers chrome-like durability.
Note: Magnetic properties limit use in electronics (e.g., DIN/N connectors) to avoid signal interference.
› Gold Plating
Purpose: Optimizes conductive contact impedance and signal transmission.
Key: High stability but costly.
› Palladium-Nickel Plating
Purpose: Superior signal transmission and wear resistance vs. gold.
Advantage: Combines palladium’s corrosion resistance with nickel’s hardness.
› Tin-Lead Plating
Purpose: Improves solderability.
Trend: Phased out due to lead concerns; replaced by bright/matte tin alternatives.
› Silver Plating
Purpose: Best conductivity and signal performance.
Note: Conducts even when oxidized but tarnishes over time. Higher cost.
Selection Criteria
Match plating type to application needs: corrosion/wear resistance, conductivity, cost, and environmental regulations.
› Cathode
The object to be plated (e.g., connector terminals or metal surfaces) where metal ions deposit into a solid coating.
› Anode
Soluble Anode: Made of the plating metal. Dissolves during electrolysis to replenish metal ions in the solution.
Insoluble Anode: Used for precious metals (e.g., white gold, iridium oxide). Does not dissolve but supplies electrons for reduction.
› Plating Solution
Contains ions of the target metal. Composition and concentration determine coating thickness, adhesion, and appearance.
› Plating Tank
Materials:Polypropylene and titanium alloys excel in harsh conditions with built-in corrosion and thermal stability, making them top picks for chemical-resistant or extreme-temperature applications.
Role: Stores solution and maintains stable plating conditions.
› Rectifier
Converts AC to DC power to drive electrolysis.
Adjust voltage/current to control deposition speed and coating thickness.
› Auxiliary Equipment
Filters: Remove impurities from the solution.
Heaters: Maintain solution temperature.
Stirrers: Ensure uniform mixing.
Air Cooling:Heat dissipation fan + air duct + comb heat sink

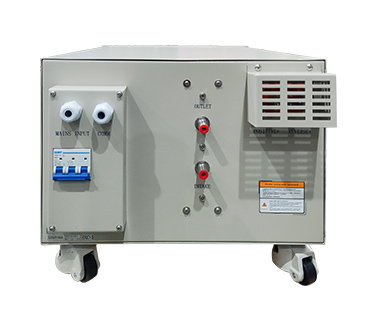

Water Cooling：Built-in water circulation line
| Type of characteristics | Parameters | Technical Requirements |
| Input Characteristics | Rated input voltage | Three-phase AC380V±10% 50Hz |
| Rated input current | AC 11.8 A | |
| Rated input power | 7.8 KVA | |
| Rated input power factor | COSΦ≥0.90 | |
| Output Characteristics | Output voltage | 0～±50V |
| Output current | 0～±120A | |
| Precision of steady current | ≤±1% | |
| Precision of stable voltage | ≤±1% | |
| Displayed precision | 0.1A，0.1V | |
| Current ripple coefficient | ≥90% | |
| Insulation Characteristics | Insulation strength | Input – Output：AC1000V,10mA,1min |
| Output – Cabinet：AC1000V, 10mA,1min | ||
| Insulation resistance | Input – Output: ≥5MΩ | |
| Input – Cabinet: ≥5MΩ | ||
| Output – Cabinet: ≥5MΩ | ||
| Protective characteristics | With self-protection function under non-normal cases such as over-voltage, over-current, overload, short circuit and overheating | |
| Other characteristics | Noise | ≤50dB |
| Running state | Continuous full load run of product | |
| Load level | Level II | |
| Insulation grade of the transformer | Grade B | |
| Weight | 60kg | |
Liyuan will keep up with the world’s latest technology closely, and uphold the concept of providing customers with high-quality power supplies and professional integrated services.
With advanced design and rich experience in rectifier manufacturing, we will provide the best power solutions as well as the most stable and efficient power supply for users both at home and abroad.
LIYUAN rectifier is the most competitive brand in China
Company relies on strong technology research and development cooperation basis, created a number of advanced technology, in recent 3 years amounted to more than 30 to apply for a patent, which has nearly 10 patents of invention.
Equipped with the national electric power transformation and control engineering technology research center (branch), and has set up a loan enterprise academician workstation.
Strict implementation of ISO quality management system, and through the CE safety certification, has been implementing ERP management for many years, to achieve the network, systematic computer control, the formation of a standard, efficient modern management system.
Liyuan adhere to innovation and the continuous improvement of power conversion efficiency and product quality.
The increasing R&D investment every year, and cooperation with China’s well-known universities, we has established the research center of national electric power conversion and control engineering technology.
Especially the related core patents of high-power synchronous rectifier power supply, stay ahead of the whole industry in China.
The ISO 9001 quality management system has been fully implemented in Liyuan, including quality inspection of components in warehouse, production process inspection, and final product inspection.
We adopt advanced scientific quality management system and the most stringent testing methods in the whole process to ensure the stability and reliability of products.
› Packing
1)Small size rectifier packing in carton box separately.
2)Large size rectifier will be packed in wooden case.
3)We guarantee that all the packing is intact when it reaches its destination.
› Shipping
1)30-45 Days after payment.
2)Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping
3)You may choose our shipping partner or your own partner.
› Maintenance
We are pleasant to share our theory and experience on equipment maintenance with users.
We are pleasant to interact with users to collect their tips and know-hows on equipment maintenance.
The module “Maintenance” here is intended to help users solve various problems they possibly encounter during equipment maintenance…
If you require pulse plating rectifiers in other specifications, we can customize the design to match your exact needs. Please feel free to contact us for more details.
