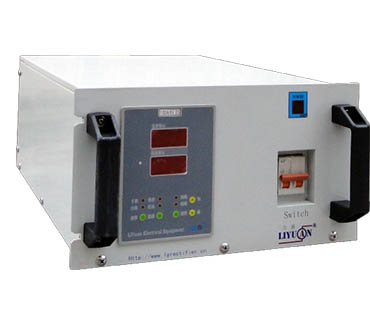

0~12V 0~100A IBGT-based Electroplating Rectifier

Features:

Small size, lightweight, nice shape and good appearance
High control precision, low ripple wave coefficient and stronger uniform plating capability
High efficiency and power factor, nice energy-saving.
Regulated voltage and current control mode
Protection for Over-temperature, over-load, over-voltage, short circuit and current limit.
RS485 interface or standard 4-20MA, 0-10V and 0-5V control signals are available
Time accumulation function, automatic feeding function and time control function can be added.
The three proofing glue is used to prevent against salt, fog and acidification in the internal PCB boards, increasing the environmental anti-corrosion capability of electronic components.

Optional models:

Model	Input	Output	*Dimension (HWL)/mm*
HMFB-100A/9V	Single phaseAC220V±10% 50HZ	DC 0～9V DC 0～100A	188 ×323×454
HMFB-100A/10V	Single phaseAC220V±10% 50HZ	DC 0～10V DC 0～100A	188 ×351 ×454
HMFB-100A/12V	Single phaseAC220V±10% 50～60HZ	DC 0～12V DC 0～100A	188 ×351 ×454
HMFB-100A15V	Single phaseAC220V±10% 50HZ	DC 0～100A DC 0～15V	188 ×351 ×454
HMFB-150A6V	Single phaseAC220V±10% 50～60HZ	DC 0～150A DC 0～6V	245 ×380 ×410
HMFB-200A/10V	Single phaseAC220V±10% 50HZ	DC 0～10V DC 0～200A	255 ×395 ×467
HMFB-200A/12V	Single phaseAC220V±10% 50～60HZ	DC 0～12V DC 0～200A	255 ×395×467
HMSB-250A/5V	Single phaseAC220V±10% 50HZ	DC 0～5V DC 0～250A	266×235×420
HMFB-300A5V	Single phaseAC220V±10% 50HZ	DC 0～300A DC 0～5V	245 ×380 ×410
HMFB-300A/6V	Single phaseAC220V±10% 50HZ	DC 0～6V DC 0～300A	255 ×380 ×410
HMFB-400A/6V	Single phaseAC220V±10% 50～60HZ	DC 0～6V DC 0～400A	255 ×380 ×410
HMFB-400A5V	Single phaseAC220V±10% 50HZ	DC 0～5V DC 0～400A	255 ×395×467
HMFB-500A/4V+G	Single phaseAC220V±10% 50～60HZ	DC 0～4V DC 0～500A	327×190×613
HMFB-500A/6V	Single phaseAC220V±10% 50～60HZ	DC 0～6V DC 0～500A	255 ×395×467
HMFB-600A/5V	Single phaseAC220V±10% 50～60HZ	DC 0～5V DC 0～600A	259×395 ×530
HMFB-600A/4V	Single phaseAC220V±10% 50HZ	DC 0～4V DC 0～600A	327×190×613
HMFB-2000A/12V	Single phaseAC220V±10% 50～60HZ	DC 0～12V DC 0～2000MA	115×355 ×272
