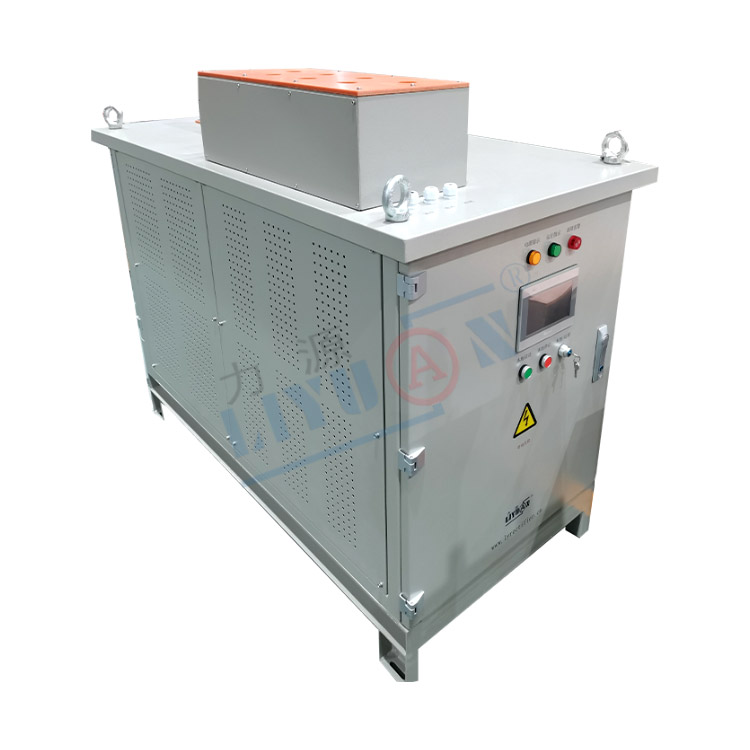

0~15KA 0~22V Rectifier for Hard Anodizing Aluminum

Specification:

Input parameters: Three phase AC380V±10%, 50-60HZ
Output parameters: DC 0~22V 0~15KA
Output mode: Common DC output
Cooling method: Water cooling
Power supply type: IGBT-based
Application Industry: Anodizing industry

Description:

Anodize including both aluminum anodizing and hard anodizing. Anodize oxidation, electrochemical oxidation of metals or alloys. The process of forming a layer of oxide film on aluminum products (anodes) under the action of an applied current in aluminum and its alloys under the corresponding electrolyte and specific process conditions. The so-called anodize oxidation of aluminum is an electrolytic oxidation process in which the surface of aluminum and aluminum alloys is usually transformed into a layer of oxide film, which has protective, decorative and some other functional properties.

Aluminum anodizing and coloring, using artificial methods to make aluminum and its alloy products surface to generate a layer of oxide film (Al2O3) and apply different colors, in order to improve the wear resistance of aluminum, prolong the service life and increase the color and beauty. The basic process of oxidation coloring is aluminum surface treatment, oxidation, coloring and subsequent hydration sealing, organic coating and other treatment processes. The coloring methods of oxide film are chemical coloring, electrolytic coloring and natural coloring, etc.

Technical Parameters

Characteristic Types	Parameter Items	Technical Requirements
Input Characteristics	Rate Input Voltage	Three-phase, AC380V±10%, 50Hz
	Rate Input Current	AC 586A
	Rate Input Power	386KVA
	Input Power Factor	COSΦ≥0.95
Output Characteristics	Output Voltage	DC 0~22V
	Output Current	DC 0~15000A
	Stabilized Current Precision precision Stab	≤1%
	Stabilized Voltage Precision	≤1%
	Display accuracy	1A，0.1V
	Current Ripple Coefficient	≤1%
	Rated Output	≥90%
	Dielectric strength	Between primary and secondary: 2000V rms 1min
		Between primary and ground: 2000V rms 1min
		Between control circuit and ground: 1500V rms 1min
	Insulating Resistance	Input—Output：≥5MΩ
		Input—Chassis：≥5MΩ
		Output—Chassis；≥5MΩ
Protection Characteristics	With over-voltage, overcurrent, overload, short circuit, overheating and other abnormal circumstances of self-protection
Other Characteristics	Noise	≤60dB
	Operational State	The product can run at full load continuously
	Insulation class	Ⅱ
	Insulation grade of transformer	B

If you need other power anodizing rectifier, we can custom design them according to customer requirements. Please contact us.

Are you looking for 0~15KA 0~22V rectifier for hard anodizing aluminum? Liyuan Haina Rectifier is one of the professional manufacturers and suppliers in this field. With over 27 years of focus on R&D, design, production, sales, and technical services for industrial rectifiers, we have already exported our products to the United States, Canada, India, Pakistan, Britain, Italy, Spain, South Africa, Russia, the UAE, Japan, South Korea, Malaysia, and other parts of the world. Equipped with a productive factory, we warmly welcome you to purchase our high-quality, Made-in-China products at competitive prices or try our customized service.
