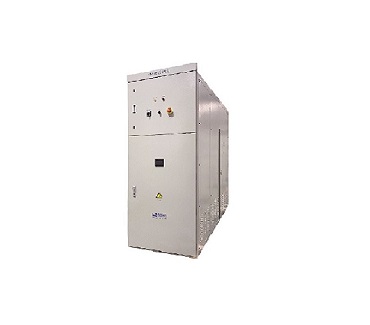

0~2800V 0~4600A Polycrystalline Silicon Power Supply

Specifications:

Input parameters: Three phase, AC10kv±10% 50±1HZ

Output parameters: DC 0~2800V; 0~4600A

Power factor: SCR maxminum current ≥0.92; IGBT≥0.95

Cooling method: Air cooling or water cooling

Control type: RS485、CAN、Ethernet are optional

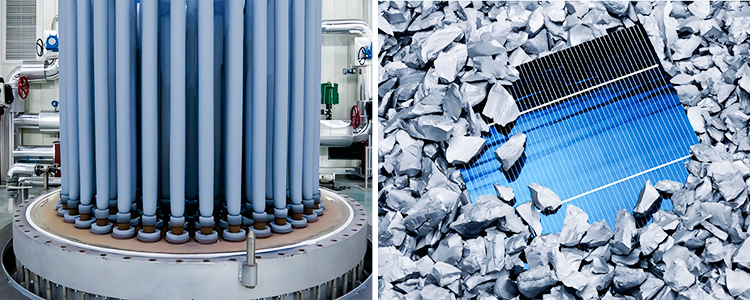

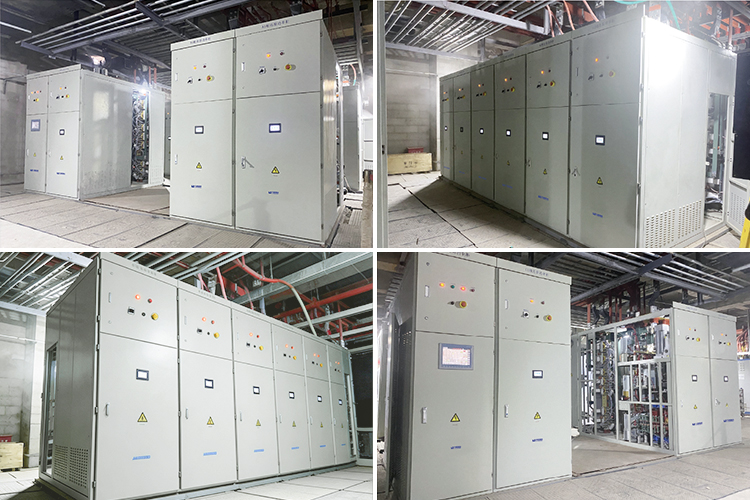

Application Industry: Polycrystalline silicon reduction furnace pressure and reduction, crystal growth

Description:

Polysilicon, is a form of elemental silicon. When molten elemental silicon solidifies under the condition of supercooling, silicon atoms are arranged into many crystal nuclei in the form of diamond lattice. If these crystal nuclei grow into grains with different crystal plane orientations, then these grains are combined to crystallize into polycrystalline silicon.

Technical Requirements:

Suppress restore integration integration
With fast current limiting technology to avoid the original easy trip phenomenon
Advanced digital trigger control system
Optical fiber has high signal transmission stability
Using efficient voltage stacking technology
Special axis center symmetry crimping process
High performance PID adaptive control strategy
Multiple effective protection functions
Intelligent fault protection, integrated design and reliable water system

Parameters:

No.	Items	parameters
1	Input voltage	Three phase AC10kv±10% 50±1HZ
2	Ac input output	3 phase transformer output 9 winding separately controlled
3	Start down voltage	12KV,customized
4	Reduction output current	0~4600A,customized
5	Reduced output voltage	0~2800V,customized
6	Precision of steady current	≤±0.2%
7	Power factor	SCR maxminum current ≥0.92; IGBT≥0.95
8	Output gear of each phase on secondary side of ScR transformer	5 gear
9	IGBT model gear	2 gear
10	SCR control model	Each load group has 5 sets of reverse parallel thyristor reverse gear shift and pressure regulation plus 2 sets of reverse parallel thyristor pressure control
11	IGBTcontrol model	PWM
12	Protection function	Over voltage, over current, under voltage, short circuit, overheating and other protective functions
13	Cooling Type	Water cooling/air cooling optional
14	Control type	RS485、CAN、Ethernet are optional
15	Dimension	As per customer’s requirements

Optional Models:

No.	Cabinet type	Model
1	SCRWater cooled reduction power cabinet	KGS G-4600A/2800V
2	SCRWater-cooled reduction starting power Converged cabinet	KGSGQ-4600A/2800V
3	SCRAir cooled restore start cabinet	KGFQ-75A/12kV
4	IGBTWater cooled reduction power cabinet	IGSG-4600A/2800V
5	IGBTWater-cooled reduction starting power Converged cabinet	IGSGQ-4600A/2800V
