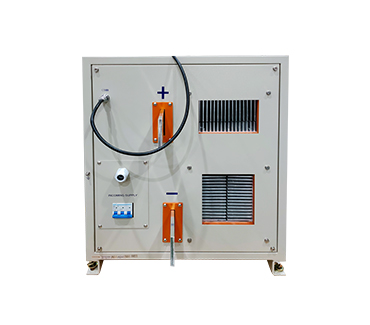

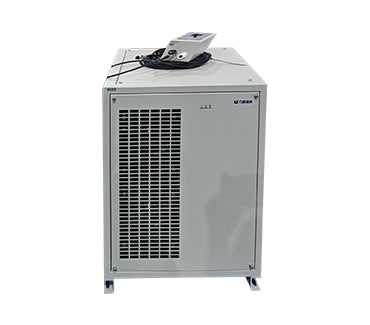

Input parameters: Three-phase AC 380V ± 10% 50Hz
In line with the national power quality standards
Output parameters: DC 0~15V 0~1200A
Output mode: Normal DC
Cooling method: Air cooling
Power supply type: synchronous rectifier power supply
Application Industry: Surface treatment industry, such as hard chrome, nickel and zinc plating
Electroplating is a process where a metal layer is added to the surface of a part using electricity. It’s often done to stop corrosion, make the surface tougher, or simply give it a cleaner, more polished look. You’ll find it used in all kinds of industries—where function matters, but so does appearance.
Elements of electroplating
Attribute type | Parameter items | Technical requirements | |
Input characteristics | Rated input voltage | Three-phase AC 380V ± 10% 50Hz
In line with the national power quality standards |
|
Rated input current | AC 31.6A | ||
Rated input power | 20.8KVA | ||
Rated input power factor | COSΦ≥0.95 | ||
Output characteristics | Output voltage | DC 0~15V adjustable | |
Output current | DC 0~1200A adjustable | ||
Steady current precision | ≤1% | ||
Steady voltage precision | ≤1% | ||
Display accuracy | 1A,0.01V | ||
Rated output efficiency | ≥91% | ||
Insulation characteristics | Insulation resistance | Input-output: ≥ 5MΩ | |
Input-chassis: ≥ 5MΩ | |||
Output-chassis; ≥5MΩ | |||
Protection characteristics | It has self-protection function under abnormal conditions such as overvoltage, overcurrent, overload, short circuit and overheat | ||
Other characteristics | Noise | ≤75dB | |
Operating status | Continuous full load operation of the product | ||
Load grade | Grade II | ||
Insulation grade of transformer | Class B | ||
Weight | 65kg |
Model | Input | Output | Dimension (mm)/L*W*H |
TBFB-15KA/4V | Three phaseAC380V±10% 50HZ | DC 0~4V DC 0~15000A | 1725×983×1080 |
TBFB-4500A/15V | Three phaseAC380V±10% 50HZ | DC 0~15V DC 0~4500A | 1126×850×923 |
TBFB-4000A/24V | Three phaseAC380V±10% 50HZ | DC 0~24V DC 0~4000A | 1135×900×900 |
TBFB-3000A/15V | Three phaseAC380V±10% 50HZ | DC 0~15V DC 0~3000A | 270×737×740 |
TBFB-3000A/10V | Three phaseAC380V±10% 60HZ | DC 0~10V DC 0~3000A | 228×592×954 |
TBFB-3000A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~3000A | 692×556.5×830 |
TBFB-2000A/12V | Three phaseAC415V±10%, 50Hz | DC 0~12V DC 0~2000A | 640×480×700 |
TBFB-1500A/24V | Three phaseAC380V±10% 50HZ | DC 0~24V DC 0~1500A | 270×737×740 |
TBFB-1500A/15V | Three phaseAC380V±10% 50HZ | DC 0~15V DC 0~1500A | 238×625×692 |
TBFB-1500A/6V | Three phaseAC380V±10% 50HZ | DC 0~6V DC 0~1500A | 660×570×380 |
TBFB-1500A/5V | Three phaseAC380V±10% 50HZ | DC 0~5V DC 0~1500A | 660×570×380 |
TBFB-1200A/18V | Three phaseAC380V±10% 50HZ | DC 0~18V DC 0~1200A | 238×625×692 |
TBFB-1000A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~1000A | 233×615×674 |
TBFB-800A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~800A | 233×440×550 |
TBFB-500A/24V | Three phaseAC380V±10% 50HZ | DC 0~24V DC 0~500A | 233×615×674 |
TBFB-500A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~500A | 341×350×501 |
TBFB-500A/6V | Three phaseAC380V±10% 50HZ | DC 0~6V DC 0~500A | 327×190×613 |
TBFB-400A/12V | Three phaseAC380V±10% 50HZ | DC 0~12V DC 0~400A | 314×190×613 |
TBFB-250A/15V | Three phaseAC380V±10% 50HZ | DC 0~15V DC 0~250A | 312×270×501 |
TBFB-250A/6V | Three phaseAC380V±10% 50HZ | DC 0~6V DC 0~250A | 225×230×428 |
TBFB-200A/20V | Three phaseAC380V±10% 50HZ | DC 0~20V DC 0~200A | 314×350×643 |
TBFB-200A/18V | Three phaseAC380V±10% 60HZ | DC 0~18V DC 0~200A | 314×350×643 |
TBFB-150A/12V | Three phaseAC220V±10% 60HZ | DC 0~12V DC 0~150A | 314×350×643 |
TBFB-100A/20V | Three phaseAC380V±10% 50HZ | DC 0~20V DC 0~100A | 314×350×643 |
TBFB-100A/12V | Three phaseAC220V±10% 50HZ | DC 0~12V DC 0~100A | 225×230×428 |
TBFB-50A/12V | Three phaseAC220V±10% 50HZ | DC 0~12V DC 0~50A | 225×230×428 |
TBFB-20A/12V | Three phaseAC220V±10% 50HZ | DC 0~12V DC 0~20A | 225×230×428 |
If you require surface treatments with different specifications, we offer custom solutions tailored to your requirements. Contact us for more information.
Looking for the factory price of a high-current 1200A 15V galvanizing power supply rectifier? Liyuan Haina Rectifier, a professional manufacturer with 27+ years specializing in industrial rectifiers, supplies global clients including the United States, Sweden, Netherlands, Italy, Spain, South Africa, Russia, Germany, Japan, South Korea, Malaysia, etc. Our advanced factory delivers cost-effective Made-in-China solutions, with competitive prices and customizable options. Contact us for sales inquiries.
