Input parameters: Three phase AC380V±10%, 50HZ
Output parameters: DC 0~12V 0~12KA
Output mode: Common DC output

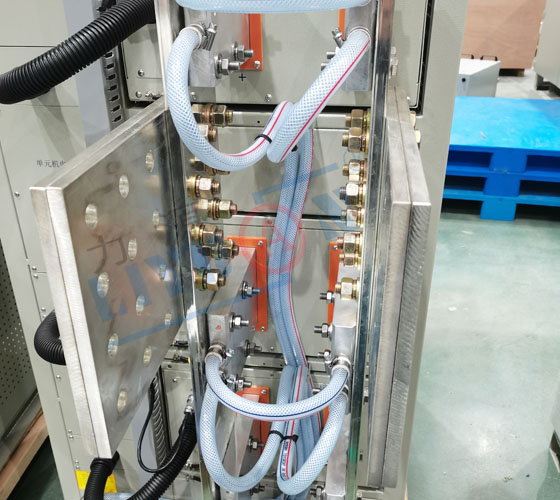

Cooling method: Water cooling
Power supply type: IGBT-based
Application Industry: Surface treatment industry, such as chrome plating
Electroplating is the process of applying a thin layer of other metals or alloys on the surface of certain metals by electrolysis. It is a process of applying a metal film to the surface of metals or other materials to prevent metal oxidation (such as rust), improve wear resistance, electrical conductivity, reflectivity, corrosion resistance (copper sulfate, etc.) and enhance aesthetics.
Types of plating:
Elements of electroplating:
Characteristic Types |
Parameter Items |
Technical Requirements |
Power Types | Power types | High-frequency Power Supply |
Model and specifications | TBSB-12KA/12V | |
Cooling mode | Water-cooled | |
Switch tube type | IGBT | |
Input Characteristics | Rated Input Voltage | Three-phase, AC380V±10% ,50HZ |
Rated Input Power | 161KVA | |
Rated Input Current | AC 245A | |
Input Power Factor | COSΦ≥0.95 | |
Output Characteristics | Output Voltage | DC 0~12V |
Output Current | DC 0~12KA | |
Stabilized Current Precision | ≤1%(Rated Current) | |
According to accuracy | 10A,0.01V | |
Rated Output efficiency | ≥94% | |
Environmental Conditions | Installation site | Indoor installations |
Altitude | ≤1500 meters | |
Ambient temperature | -20℃~40℃ | |
Relative humidity | ≤90% | |
Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |

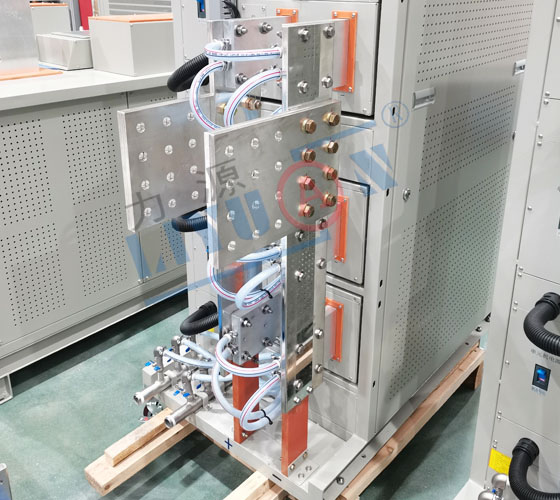

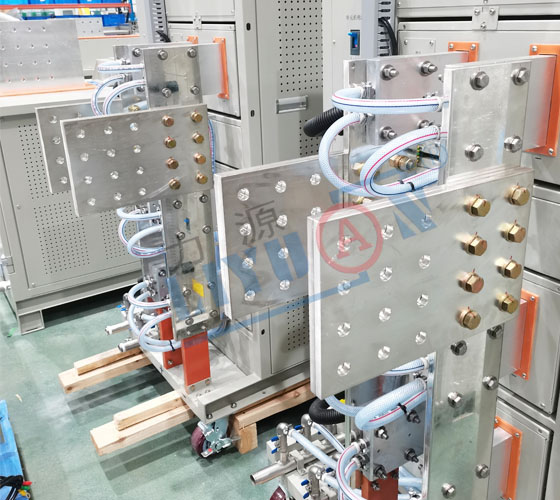

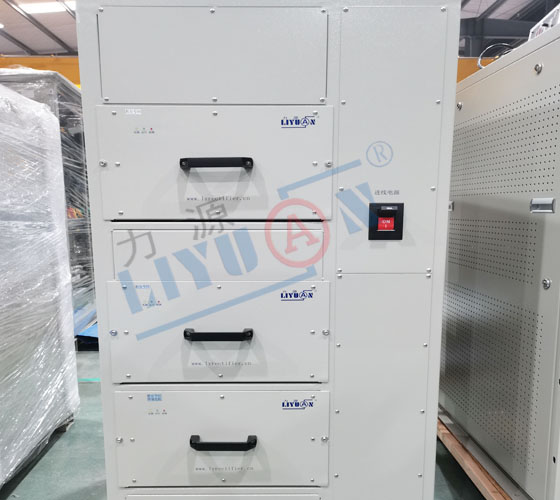

Other | Composition | It consists of three 5000A/12V parallel
units with identical structure and function |

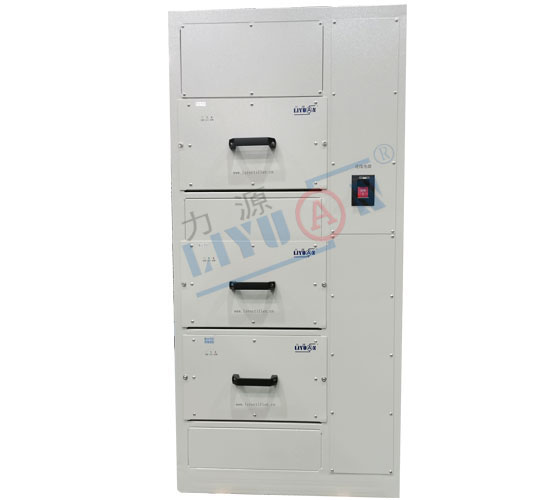

External Dimension | Height*Width*Depth | H467mm×W700mm×D1118mm |
Protection Characteristics | With over voltage, over current, overload, short circuit,
overheating and other abnormal self-protection function |
Model | Input | Output | Dimension (mm)/L*W*H |
TBSB-400A/12V | Three Phase AC380V±10% 50HZ | 12V/400A | 500*343*183 |
TBSB-500A/12V | Three Phase AC380V±10% 50HZ | 12V/500A | 460*310*185 |
TBSB-600A/12V | Three Phase AC380V±10% 50HZ | 12V/600A | 500*343*183 |
TBSB-800A/5V | Three Phase AC380V±10% 50HZ | 5V/800A | 460*310*185 |
TBSB-800A/6V | Three Phase AC380V±10% 50HZ | 6V/800A | 460*310*185 |
TBSB-800A/12V | Three Phase AC380V±10% 50HZ | 12V/800A | 780*350*180 |
TBSB-1000A/12V | Three Phase AC380V±10% 50HZ | 12V/1000A | 644*330*192 |
TBSB-1000A/16V | Three Phase AC380V±10% 50HZ | 16V/1000A | 620*310*180 |
TBSB-1000A/25V | Three Phase AC380V±10% 50HZ | 25V/1000A | 700*352*185 |
TBSB-1000A/36V | Three Phase AC380V±10% 50HZ | 36V/1000A | 700*352*185 |
TBSB-1000A/38V | Three Phase AC380V±10% 50HZ | 38V/1000A | 780*365*187 |
TBSB-1200A/5V | Three Phase AC380V±10% 50HZ | 5V/1200A | 580*342*185 |
TBSB-2000A/5V | Three Phase AC380V±10% 50HZ | 5V/2000A | 780*310*180 |
TBSB-1800A/12V | Three Phase AC380V±10% 50HZ | 12V/1800A | 780*310*180 |
TBSB-2500A/12V | Three Phase AC380V±10% 50HZ | 12V/2500A | 1024*340*180 |
TBSB-3000A/12V | Three Phase AC380V±10% 50HZ | 12V/3000A | 700*352*185 |
TBSB-3000A/15V | Three Phase AC380V±10% 50HZ | 15V/3000A | 824*340*180 |
TBSB-4000A/10V | Three Phase AC380V±10% 60HZ | 10V/4000A | 700*362*185 |
TBSB-4000A/15V | Three Phase AC380V±10% 50HZ | 15V/4000A | 824*340*180 |
TBSB-5000A/7V | Three Phase AC380V±10% 50HZ | 7V/5000A | 700*362*185 |
TBSB-5000A/15V | Three Phase AC380V±10% 50HZ | 15V/5000A | 824*340*180 |
※Can be customized according to requirements※
|
