Input parameters: Six phase, AC380V±10%, 50HZ
Output parameters: DC 0-110V 0-830A
Output mode: Common DC output
Cooling method: Water cooling
Power supply type: Silicon controlled rectifier
Application Industry: Chlor-Alkali Production, such as membrane/diaphragm cell for Cl₂, H₂, NaOH; Chlorate Manufacturing, such as NaClO₃, sodium chlorite; Water Treatment, such as NaOCl, ClO₂, on-site Cl₂; Precious Metal Refining, such as gold/silver chloride electrolysis.
A Chlor-Alkali Rectifier, unlike standard industrial rectifiers, must keep current rock-solid while blocking reverse events. If the DC wavers — even briefly — side reactions kick in, membranes degrade, product quality drops, or worse, you compromise safety. That’s why it’s the core of any chlor-alkali or chlorination plant.

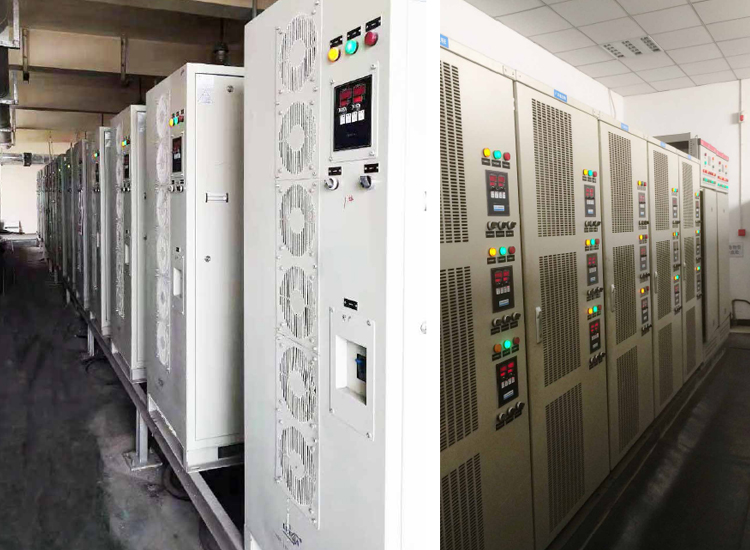

› Chlor-Alkali Production — That’s Where You Get Caustic Soda and Liquid Chlorine
Take saturated brine. Run electrolysis. Out comes Cl₂, H₂, and NaOH.Membrane cell and diaphragm cell plants use this setup all the time. A Chlor-Alkali Rectifier is the standard choice here.
› Chlorate Manufacturing
Same thing applies. You need continuous DC to make sodium chlorate (NaClO₃), sodium chlorite, and other chlorine derivatives. Both chlor-alkali rectifiers and chlorination rectifiers can handle this.

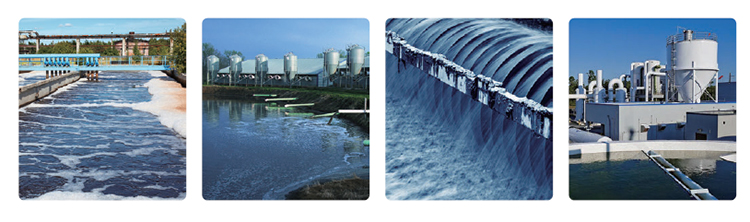

› Fine Chemical and Water Treatment Industries
These rectifiers power sodium hypochlorite generators, chlorine dioxide systems, and on-site chlorine generation units for industrial water treatment. Chlorination rectifiers are particularly common in water treatment applications.
› Precious Metal Refining
You’ll also find them in electrolytic purification of precious metals. Gold chloride, silver chloride solutions—that sort of thing. Both rectifier types work well here too.
› Exceptional Energy Efficiency and Low Harmonic Performance
36-pulse and 48-pulse configurations as standard. Add APF (active power filter) and THD drops below 3%. Overall efficiency hits 98.5%.
› Advanced Corrosion Protection and Cooling Design
Fully enclosed cabinets, conformal coatings, and optimized cooling. Proprietary designs improve thermal balance and reduce maintenance.
› Modular Hot-Swappable Architecture
Drawer-type modules. Swap a faulty one without stopping production. That’s 24/7 operation.
› Dual-Core Digital Control Platform
DSP + FPGA gives you accurate pulse sync, fast response, soft-start, and automatic current recovery. Minimizes stress on electrolytic cells.
› Grid-Friendly Design
Optimized transformer and rectifier configurations improve electromagnetic compatibility. Less interference with surrounding instruments, better plant power quality.
› Pulse Number Selection
Match pulse count to local power quality requirements and plant capacity.
6-pulse: Small-capacity applications
12-pulse: Conventional industrial systems
24/36/48-pulse: Large-scale chlor-alkali facilities needing superior harmonic performance
Higher pulse number = lower harmonic distortion.
› Voltage Regulation Range
Cell voltage changes as electrolyzers age. Get enough transformer regulation range to maintain efficient operation over the full service life.
› Cooling Method
Above 15 KA? Use closed-loop pure water cooling. Air-cooled only for lower-capacity installations in clean environments.
› Safety Configuration
High-speed DC breakers and comprehensive protection are essential. No shortcuts.
| Power Types | Power types | Silicon Controlled Rectifier |
| Model and specifications | KGFB-830A/110V | |
| Cooling mode | water cooling | |
| Switch tube type | SCR | |
| Rectifier type | SCR | |
| Input Characteristics | Rated Input Voltage | Three-phase,AC480V±10% ,60HZ |
| Rated Input Power | 119KVA | |
| Rated Input Current | 144A | |
| Input Power Factor | COSΦ≥0.90 | |
| Circuit breaker | 3P-200A | |
| Output Characteristics | Output Voltage | DC 0～110V |
| Output Current | DC 0～830A | |
| Stabilized Current Precision | ≤1%（Rated Current) | |
| Stabilized Voltage Precision | ≤1% | |
| According to accuracy | 1A，0.1V | |
| Rated Output | η≥85% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤2000m | |
| Ambient temperature | -10℃～45℃ | |
| Relative humidity | ≤90％（20±5%） | |
| Dust gas | No influence | |
| Control Mode | Operating mode | Use RS485 Network Three-Meter Controller to control |
| Display mode | RS485 Digital display | |
| Accommodation mode | Knob adjustment | |
| Soft start | Yes | |
| Remote Communication | AD/DA control signal | |
| Requirement about water condition | Water temperature (℃) | Inlet water temperature: 25~35℃， In order to prevent the formation of condensation water,the water temperature is the best around 28 ℃(and the environment temperature is not more than 5 ℃) |
| Water pressure (MP) | The difference between the inlet pressure and the outlet pressure ＞ 0.1MP; the maximum inlet pressure ≤0.4MP. | |
| PH value | 6～8 | |
| Conductivity (us/cm) | ≤50us/cmSoft water/deionized water | |
| Water volume (ton/hour) | About 4.96ton/hour | |
| Power Unit | Power Unit | Use a single830A/110V power supply |
| Main Body Structure | Main body structure | Framework of the combination of vertical |
| Weight | Net weight | About 800KG |
| External Dimension | Height*Width*Depth | H1665mm×W100mm×D1000mm |
| Input Cable | Copper wire | 3*35mm2+16mm2 |
| Protection Characteristics | Self-protective function under the abnormal situations such as
over/Low-voltage, over-current, default phase，short circuit, overheating and so on |
|
| Other Characteristics | Load type | Ⅱ level |
| Insulation class | B level | |
| Protection class | IP 53 | |
| Noise | ≤50dB | |
| Operational State | Operational State Products can be continuously full-load operated | |
If you require water treatment power supplies with different specifications, we can custom-design them to meet your needs. Please contact us for more information.
