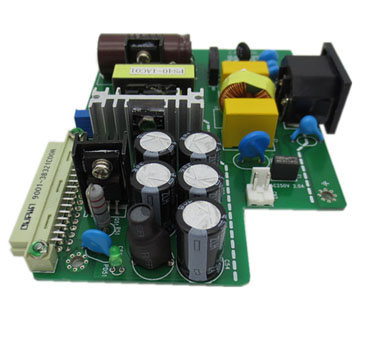

Mainly used in financial equipment and communication devices.
| Output | DC Voltage | 3.45V | |
| Rated Current | 12A | ||
| Voltage Adj. Range | 3.14V ~ 3.63V | ||
| Rated Power | ≤ 40W | ||
| Efficiency | ≥ 75% | ||
| Power Factor | >0.95 | ||
| Input | Voltage Range | 90VAC – 264VAC | |
| Protection | Overload | ≥75A | ≥3.7A |
| Over Voltage | 3.8～4.2V | 53～56V | |
| Short circuit | Yes | ||
| Environment | Working Temperature | 0~50℃( refer to output derating curve) | |
| Others | Dimension | 75mm*50mm*30mm( L*W*H) | |
| *Ok to customize as per requirements* | |||
