Input parameters:DC750V Complies with National Power Quality Standards
Output parameters: DC 0～150V 0～300A
Output mode: Ordinary direct current
Cooling method: Water cooling
Power supply type: High frequency switching power
Application Industry: Hydrogen Electrolysis Rectifier, such as Hydrogen Electrolysis, ballast water treatment, seawater or salt water sodium hypochlorite.

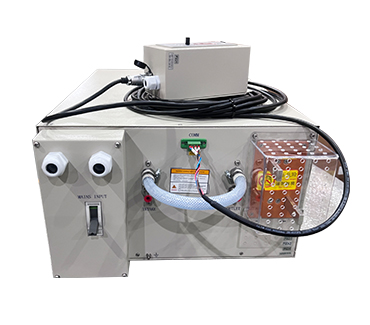

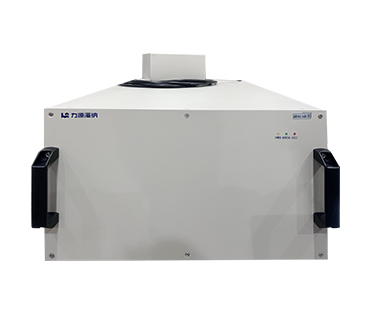

The Hydrogen Electrolysis Rectifier is a DC power supply device used to produce hydrogen by electrolyzing water. It converts AC power into DC power to provide the required electrical energy for the electrolyzer, thereby decomposing water molecules to produce hydrogen and oxygen. This type of equipment is essential for achieving green energy transformation and hydrogen economy.
| Type of characteristics | Parameters | Technical Requirements |
| Input characteristics | Rated input voltage | DC750V Complies with National Power Quality Standards |
| Rated input current | AC 63.3 A | |
| Rated input power | 50.0KVA | |
| Rated input power factor | COSΦ≥0.95 | |
| Output characteristics | Output voltage | DC 0～150V adjustment |
| Output current | DC 0～300A adjustment | |
| Precision of steady current | ≤1% | |
| Precision of stable voltage | ≤1% | |
| Displayed precision | 1A，0.1V | |
| Current ripple coefficient | ≤1%（I≥50%Id） | |
| Rated output power | ≥90% | |
| Insulation characteristic | Insulation resistance | Input – Output: ≥5MΩ |
| Input – Cabinet: ≥5MΩ | ||
| Output – Cabinet: ≥5MΩ | ||
| Protective characteristics | With self-protection function under non-normal cases such as over-voltage, over-current, overload, short circuit and overheating | |
| Other characteristics | Noise | ≤75dB |
| Running state | Continuous full load run of product | |
| Load level | Level II | |
| Insulation grade of the transformer | Grade B | |
| Weight | 40kg | |
*Photovoltaic, wind power, wave power, biomass power(green power) are connected to the power sourcerectifier and the electrolyzer to electrolyze hydrogen production
*Electrolytic hydrogen production by power source rectifer connected to conventional power grid and integrated with electrolyzer
*Inverter system between hydrogen energy storage and power grid
| Model | Input | Output | Dimension (H*W*L)/mm |
| TDSB-9000A/38V | Three phase AC380V±10% 50HZ | DC 0～38V DC 0～9000A | 1640×1250×1300 |
| TDSB-6000A/50V | Three phase AC380V±10% 50HZ | DC 0～50V DC 0～6000A | 2040×680×898 |
| TDSB-2000A/70V | Three phase AC380V±10% 50HZ | DC 0～70V DC 0～2000A | 1875×1280×1300 |
| TDSB-1500A/80V | Three phase AC380V±10% 50HZ | DC 0～80V DC 0～1500A | 1015×620×1098 |
| TDSB-700A/40V | Three phase AC380V±10% 50HZ | DC 0～40V DC 0～700A | 180×310×799 |
| TDSB-200A/150V | Three phase AC380V±10% 50HZ | DC 0～150V DC 0～200A | 285×434×750 |
| TDSB-10000A/100V | Three phase AC380V±10% 50HZ | DC 0～100V DC 0～10000A | 2200×2500×1450 |
| TDSB-8KA/30V | Three phase AC380V±10% 60HZ | DC 0～30V DC 0～8000A | 2055×1480×1480 |
| TDSB-3KA/30V | Three phase AC380V±10% 60HZ | DC 0～30V DC 0～3000A | 2055×1780×1230 |
| TDSB-300A/30V | Three phase AC380V±10% 50HZ | DC 0～30V DC 0～300A | 180×310×799 |
| TDSB-6000A/50V | Three phase AC380V±10% 50HZ | DC 0～50V DC 0～6000A | 2100×800×1180 |
| TDSB-2000A/70V | Three phase AC380V±10% 50HZ | DC 0～70V DC 0～2000A | 1425×620×1098 |
| TDSB-5000A/45V | Three phase AC380V±10% 50HZ | DC 0～45V DC 0～5000A | 1675×650×898 |
| TDSB-500A/50V | Three phase AC380V±10% 50HZ | DC 0～50V DC 0～500A | 180×310×700 |
| TDSB-1000A/60V | Three phase AC380V±10% 50HZ | DC 0～60V DC 0～1000A | 1015×620×1098 |
| TDSB-1000A/40V | Three phase AC380V±10% 50HZ | DC 0～40V DC 0～1000A | 180×387×972 |
| TDSB-500A/40V | Three phase AC380V±10% 50HZ | DC 0～40V DC 0～500A | 180×310×799 |
| TDSB-650A/30V | Three phase AC380V±10% 50HZ | DC 0～30V DC 0～650A | 180×310×700 |
| TDSB-200A/160V | Three phase AC380V±10% 50HZ | DC 0～160V DC 0～200A | 285×434×750 |
| TDSB-200A/120V | Three phase AC380V±10% 50HZ | DC 0～120V DC 0～200A | 285×434×750 |
| TDSB-400A/24V | Three phase AC380V±10% 50HZ | DC 0～24V DC 0～400A | 180×310×700 |
| TDSB-200A/24V | Three phase AC380V±10% 50HZ | DC 0～24V DC 0～200A | 180×310×460 |
| TDSB-3KA/20V | Three phase AC380V±10% 60HZ | DC 0～20V DC 0～3000A | 2055×1780×1230 |
| TDSB-1000A/30V | Three phase AC380V±10% 50HZ | DC 0~30V DC 0～1000A | 180×310×664 |
| ※Can be customized according to requirements※ | |||
If you require hydrogen electrolysis rectifier with different specifications, we can custom-design them to meet your requirements. Please contact us for more information.
