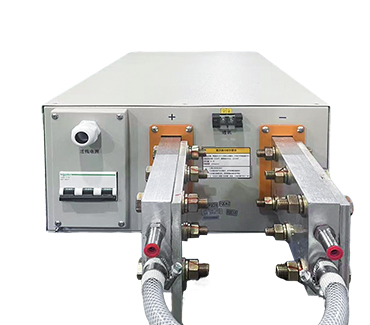

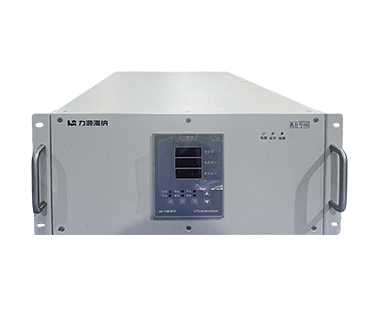

Input parameters: Three phase, AC380V±10% ,50HZ

Output parameters: DC 0~15V 0~2000A

Cooling method: Water cooling

Power supply type: IGBT-based power supply

Application Industry: Electrolytic copper foil industry

Electrolytic copper foil refers to copper material as the main raw material, using electrolytic copper foil production. Dissolve copper material by copper sulfate solution, then in electrolytic equipment, copper sulfate solution by direct current electrodeposition and made the original foil, again carries on the coarsening, curing, heat resistant, corrosion resistant layer, prevent oxidation layer surface treatment, such as lithium electricity copper foil axial-flow compressor.in order main surface oxidation treatment, finally made after cutting, testing the finished product.

During electrolysis, cations in the electrolyte migrate to the cathode and electrons are reduced at the anode. The anion runs to the anode and loses electrons to be oxidized. Two electrodes were connected in copper sulfate solution and direct current was applied. At this point, copper and hydrogen will be found to precipitate from the plate connected to the cathode of the power supply. If it is a copper anode, copper dissolution and oxygen precipitation occur simultaneously.

The module of the synchronous rectifier high-frequency switching power supply is installed in the parallel cabinet, and is connected with the cathode and anode bus of the foil generator through the output of the bus. Clean appearance, compact structure. High power conversion efficiency, reduce customer use cost. Power supply adopts N + 1 backup mode, which can realize thermal maintenance of the whole machine and ensure continuous production by customers.

Electrolytic copper foil, as a key functional basic raw material of electronic manufacturing industry, is mainly used in the production of lithium ion battery and printed circuit board (PCB). Among them, lithium copper foil has good electrical conductivity, good machining performance, soft texture, mature manufacturing technology, outstanding cost advantages and other characteristics, so it becomes the choice of lithium ion battery anode collector.

If you need other copper foil electrolytic rectifiers, we can custom design them according to customer requirements. Please contact us.

Need a 2000A 15V water cooling rectifier for copper foil electrolysis? Liyuan Haina Group is one of the professional manufacturers and suppliers in this field. With over 27 years of focus on R&D, design, production, sales, and technical services for industrial rectifiers, we have already exported our products to the United States, Canada,Pakistan, Britain, Italy, Spain, South Africa, Russia, the UAE, Japan, South Korea, Malaysia, and other parts of the world. Equipped with a productive factory, we warmly welcome you to purchase our high-quality, Made-in-China products at competitive prices or try our customized service.
