Input parameters: Three-phase, AC380V±10%, 50HZ
Output parameters: DC 0~15V 0~10000A
Output mode: Ordinary direct current
Cooling method: Water cooling
Power supply type: IGBT-based
Application Industry: Electrolysis hydrogen production supplies refineries, fuel cells, transport, and industries, backed by renewable energy and hydrogen storage solutions.

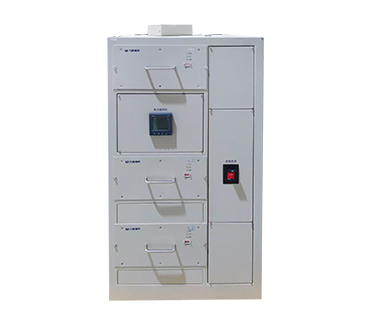

The Hydrogen Electrolysis Rectifier is a DC power supply device used to produce hydrogen by electrolyzing water. It converts AC power into DC power to provide the required electrical energy for the electrolyzer, thereby decomposing water molecules to produce hydrogen and oxygen. This type of equipment is essential for achieving green energy transformation and hydrogen economy.

| Characteristic Types | Parameter Items | Technical Requirements |
| Power Types | Power types | High-frequency Power Supply |
| Model and specifications | TBSHE-10KA/15V | |
| Cooling mode | Water-cooled | |
| Switch tube type | IGBT | |
| Input Characteristics | Rated Input Voltage | Three-phase, AC380V±10%, 50HZ |
| Rated Input Power | 164KVA | |
| Rated Input Current | AC 250A | |
| Input Power Factor | COSΦ≥0.95 | |
| Output Characteristics | Output Voltage | DC 0~15V |
| Output Current | DC 0~10KA | |
| Stabilized Current Precision | ≤1%(Rated Current) | |
| According to accuracy | 10A,0.01V | |
| Rated output efficiency | ≥94% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤1500 meters | |
| Ambient temperature | -20℃~40℃ | |
| Relative humidity | ≤90% | |
| Control Mode | Operating Mode | PLC, ADDA, Ethernet, RS485 and RS232 |
| Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function | |
*Photovoltaic, wind power, wave power, biomass power(green power) are connected to the power sourcerectifier and the electrolyzer to electrolyze hydrogen production
*Electrolytic hydrogen production by power source rectifer connected to conventional power grid and integrated with electrolyzer
*Inverter system between hydrogen energy storage and power grid

| Model | Input | Output | Dimension (H*W*L)/mm |
| TDSB-9000A/38V | Three phase AC380V±10% 50HZ | DC 0~38V DC 0~9000A | 1640×1250×1300 |
| TDSB-6000A/50V | Three phase AC380V±10% 50HZ | DC 0~50V DC 0~6000A | 2040×680×898 |
| TDSB-2000A/70V | Three phase AC380V±10% 50HZ | DC 0~70V DC 0~2000A | 1875×1280×1300 |
| TDSB-1500A/80V | Three phase AC380V±10% 50HZ | DC 0~80V DC 0~1500A | 1015×620×1098 |
| TDSB-700A/40V | Three phase AC380V±10% 50HZ | DC 0~40V DC 0~700A | 180×310×799 |
| TDSB-200A/150V | Three phase AC380V±10% 50HZ | DC 0~150V DC 0~200A | 285×434×750 |
| TDSB-10000A/100V | Three phase AC380V±10% 50HZ | DC 0~100V DC 0~10000A | 2200×2500×1450 |
| TDSB-8KA/30V | Three phase AC380V±10% 60HZ | DC 0~30V DC 0~8000A | 2055×1480×1480 |
| TDSB-3KA/30V | Three phase AC380V±10% 60HZ | DC 0~30V DC 0~3000A | 2055×1780×1230 |
| TDSB-300A/30V | Three phase AC380V±10% 50HZ | DC 0~30V DC 0~300A | 180×310×799 |
| TDSB-6000A/50V | Three phase AC380V±10% 50HZ | DC 0~50V DC 0~6000A | 2100×800×1180 |
| TDSB-2000A/70V | Three phase AC380V±10% 50HZ | DC 0~70V DC 0~2000A | 1425×620×1098 |
| TDSB-5000A/45V | Three phase AC380V±10% 50HZ | DC 0~45V DC 0~5000A | 1675×650×898 |
| TDSB-500A/50V | Three phase AC380V±10% 50HZ | DC 0~50V DC 0~500A | 180×310×700 |
| TDSB-1000A/60V | Three phase AC380V±10% 50HZ | DC 0~60V DC 0~1000A | 1015×620×1098 |
| TDSB-1000A/40V | Three phase AC380V±10% 50HZ | DC 0~40V DC 0~1000A | 180×387×972 |
| TDSB-500A/40V | Three phase AC380V±10% 50HZ | DC 0~40V DC 0~500A | 180×310×799 |
| TDSB-650A/30V | Three phase AC380V±10% 50HZ | DC 0~30V DC 0~650A | 180×310×700 |
| TDSB-200A/160V | Three phase AC380V±10% 50HZ | DC 0~160V DC 0~200A | 285×434×750 |
| TDSB-200A/120V | Three phase AC380V±10% 50HZ | DC 0~120V DC 0~200A | 285×434×750 |
| TDSB-400A/24V | Three phase AC380V±10% 50HZ | DC 0~24V DC 0~400A | 180×310×700 |
| TDSB-200A/24V | Three phase AC380V±10% 50HZ | DC 0~24V DC 0~200A | 180×310×460 |
| TDSB-3KA/20V | Three phase AC380V±10% 60HZ | DC 0~20V DC 0~3000A | 2055×1780×1230 |
| TDSB-1000A/30V | Three phase AC380V±10% 50HZ | DC 0~30V DC 0~1000A | 180×310×664 |
| ※Can be customized according to requirements※ | |||
If you need other hydrogen electrolysis rectifiers, we can custom design them according to customer requirements. Please contact us.
