| Items | Parameter Items | Parameter details |
| Input | Rated voltage | Three phase AC380V±10% 50HZ |
| Power factor | PF≥0.95 | |
| Output | Rated Voltage | DC 0~12V |
| Rated Current | DC 0～12000A | |
| Current precision | ≤1% | |
| Voltage precision | ≤1% | |
| Rated Efficiency | ≥95% | |
| Insulation | Insulation resistance | Input—Output：≥5MΩ |
| Input—Case： ≥5MΩ | ||
| Output—Case: ≥5MΩ | ||
| Protection | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function | |
| Other Characters | Cooling type | Water cooling |
| Operation | Products can be continuously full-load running | |
| Load Grade | Class Ⅱ | |

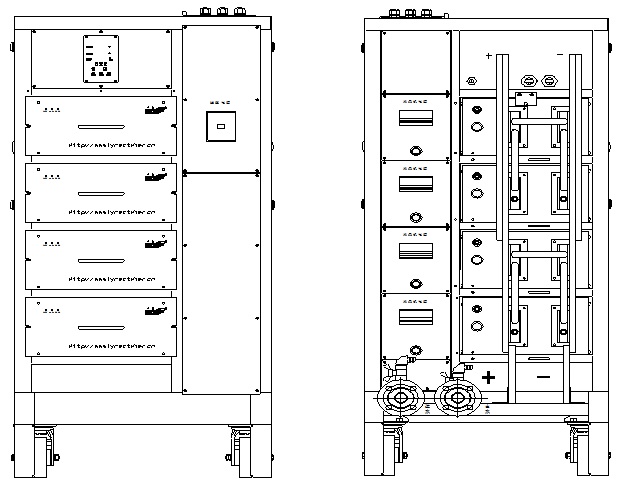

| Dimension |
600*863*1445mm(W*L*H) |
|
Hot Tags: 0~12KA 0~12V Water-cooled rectifier for chrome plating,chrome plating rectifier,hard chrome plating rectifier,electroplating rectifier,plating rectifier manufacturers
